Official DistributorBy Rittal
SKU
Weight
37.1 kg
This product is Not Cancellable/Not Returnable

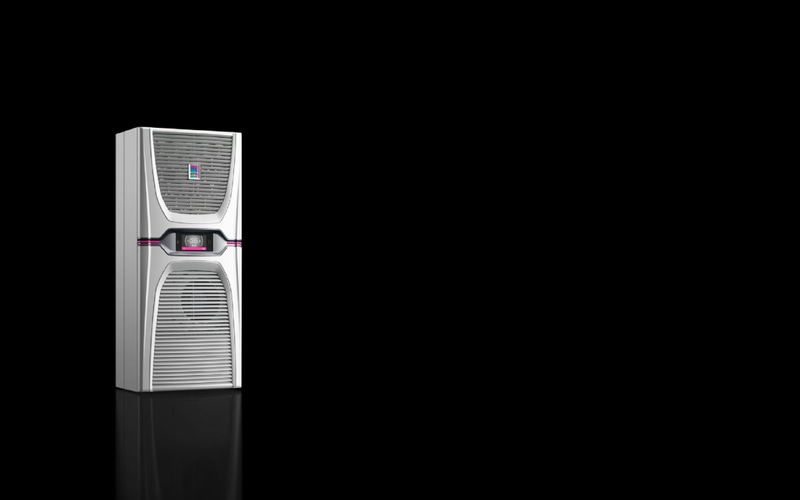

SK cooling unit Blue e+, wall-mounted, 1.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 400 x 950 x 310 mm
Supply includes
Nano-coated condenser
Integral electric condensate evaporation
Assembly components
Wired ready for connection (plug-in terminal strip)

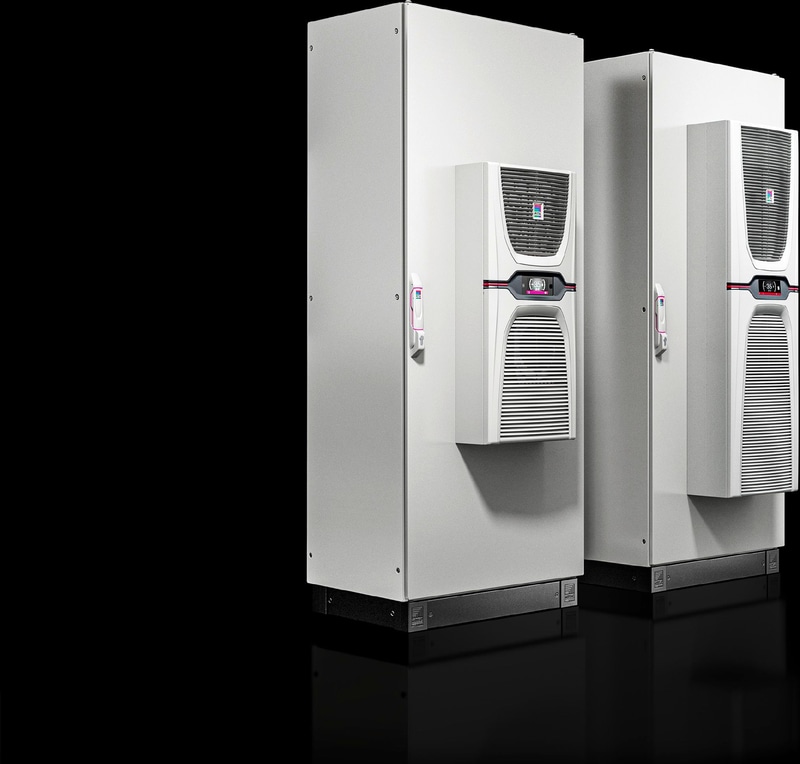

Wall-mounted cooling unit Blue e+ 1.6 - 5.8 kW
Revolutionary energy efficiency through innovative hybrid technology. On average, 75% energy saved due to speed-regulated components and heat pipe technology. Suitable for international use due to a unique multi-voltage capability. Intuitive operation via touch display. Identical mounting cut-out (external mounting, partial internal mounting and full internal mounting) for four output categories (2.0 - 5.8 kW).
Technical Specifications
Air throughput (unimpeded air flow)
| External circuit | 895 m³/h |
| Internal circuit | 700 m³/h |
Dimensions
| Width | 400 mm |
| Height | 950 mm |
| Depth | 310 mm |
Energy efficiency ratio (EER) 50/60 Hz L35 L35
| Refrigeration factor L35 L35 (EER) 50 Hz | 3.1 |
| Refrigeration factor L35 L35 (EER) 60 Hz | 3.1 |
Rated power Pel
| Power consumption L35 L35/50 Hz | 0.54 kW |
| Power consumption L35 L35/60 Hz | 0.54 kW |
| Power consumption L35 L50/50 Hz | 0.61 kW |
| Power consumption L35 L50/60 Hz | 0.61 kW |
Refrigerant/cooling medium
| Refrigerant | R134a |
| Quantity | 0.75 kg |
| Global Warming Potential (GWP) | 1,430 |
| CO₂ equivalent (CO₂e) | 1.07 t |
Required mounting cut-out
| Width of opening | 383 mm |
| Cut-out height | 929 mm |
Total cooling output to DIN EN 14511
| Cooling output L35 L35/50 Hz | 1.6 kW |
| Cooling output L35 L35/60 Hz | 1.6 kW |
| Cooling output L35 L50/50 Hz | 1.2 kW |
| Cooling output L35 L50/60 Hz | 1.2 kW |
| Benefits | An average of 75% energy savings due to speed-regulated components and heat pipe technology |
| Material | Carbon steel |
| Color | RAL 7035 |
| Options | For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300. Increase machine availability and process safety by remote monitoring of device data, condition, and system messages. |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz |
| Note | Please observe the assembly instructions. |
| Rated output | 0.62 kW |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 6.4 |
| Version | wall-mounted |
| Protection category IP to EN 60 529 | Internal circuit IP 55 |
| Protection category NEMA | UL Type 3R/12 |
| Temperature control | e+ controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...50 °C |
| Permissible operating pressure (p. max.) | 24 bar |
| Weight/packaging unit | 37.1 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177708082 |
| ETIM 7.0 | EC000855 |
| ECLASS 8.0 | 27180704 |
Why Proax for Rittal 3185830?
Proax is an authorized distributor of Rittal 3185830 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
