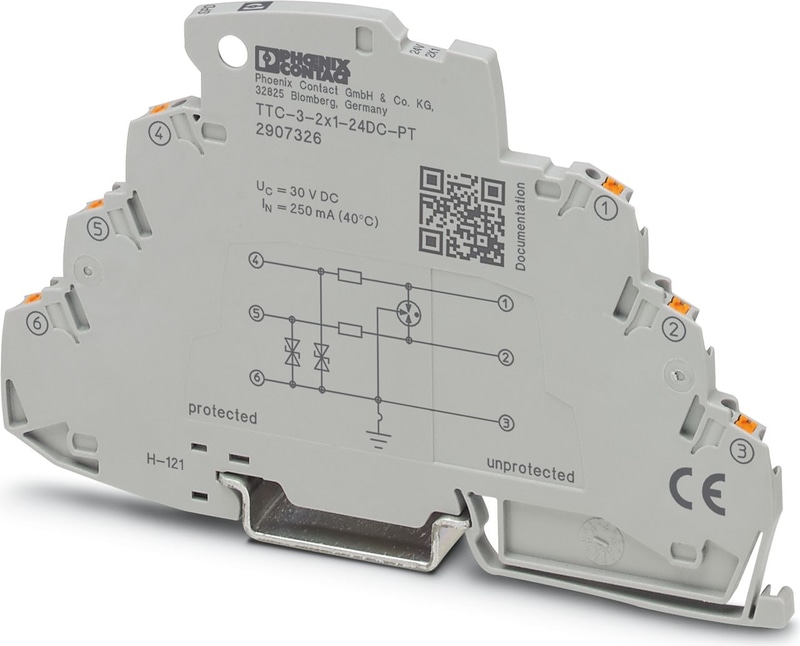

TTC-3-2X1-24DC-PT - Surge protection device
Surge protection for two signal wires with common reference potential, e.g., Digital IN/OUT. Can be used in safety-related circuits up to SIL 3.
- Extremely space-saving installation with the narrowest overall width of just 3.5 mm
- Cost-optimized with tailored product features
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Technical Specifications
Product properties
| Product family | TERMITRAB complete |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | DIN rail module, one-piece |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | Push-in connection |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 1 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
Dimensions
| Width | 3.5 mm |
| Height | 106 mm |
| Depth | 69.5 mm (incl. DIN rail 7.5 mm) |
Material specifications
| Color | gray (RAL 7042) |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing Material | PBT |
Mechanical data
| Open side panel | Yes |
Protective circuit
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Maximum continuous voltage UC | 30 V DC |
| Maximum continuous voltage UC | 21 V AC |
| Rated current | 250 mA (70 °C) |
| Operating effective current IC at UC | ≤ 1 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 0.5 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Voltage protection level Up (line-earth) | ≤ 50 V (C1 - 500 V / 250 A) |
| Voltage protection level Up (line-earth) | ≤ 100 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 50 V (C3 - 30 A) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 600 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), asym. (signal ground) in 150 Ω system | typ. 2.4 MHz |
| Capacity (core-earth) | typ. 1 nF |
| Resistance per path | 2.2 Ω ±10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 250 mA (FF) |
| Impulse durability (line-earth) | C1 - 500 V / 250 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 30 A |
| Impulse durability (line-earth) | D1 - 500 A |
| Pulse reset time (line-earth) | ≤ 30 ms |
Ambient conditions
| Degree of Protection | IP20 (with end cover) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
EN 61643-21
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | DIN rail: TH 35 - 7.5 mm |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
