2500610
Official DistributorBy Rittal
SKU
RIT2500610
Weight
0.065 kg

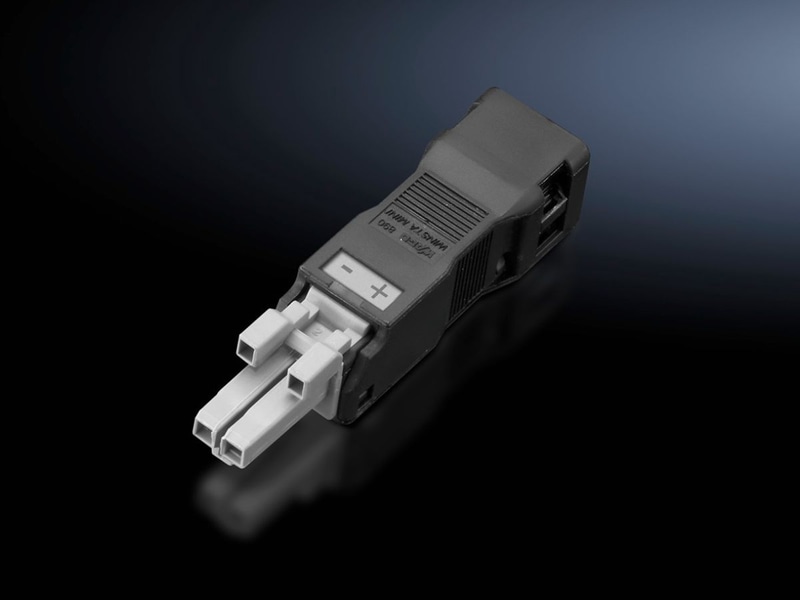

SZ Jack, for power supply and through-wiring, 2-pole, 24 V DC, Connection accessories for self-assembly
Technical Specifications
Dimensions
| Width | 15.6 mm |
| Height | 13.2 mm |
| Depth | 61.6 mm |
| Version | Jack, 2-pole |
| Cross-section, nominal | 1.5 mm² |
| Connection of round conductors, single-wire | AWG 16 ‐ AWG 22 |
| Connection of round conductors, multi-wire | AWG 18 ‐ AWG 22 |
| Packaging unit | 5 pc(s). |
| Weight/packaging unit | 0.065 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177918740 |
| ETIM 7.0 | EC000458 |
| ECLASS 8.0 | 27440314 |
Why Proax for Rittal 2500610?
Proax is an authorized distributor of Rittal 2500610 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
