MPDB67650
Official DistributorBy Mersen
SKU
MERMPDB67650
Weight
0.227 kg

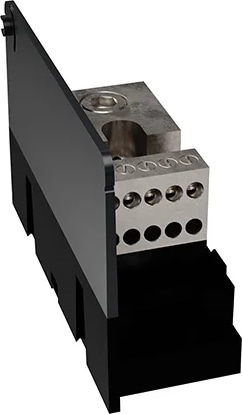

Open-Style PDB UL 1953 1000V 250A Tin‑plated Aluminum – 310A Adder 1 – 10 openings; 350-#6 --- #6-#14 Box to Box
Technical Specifications
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| Frequency | 50/60 Hz |
| ac or dc | AC/DC |
| Number of Poles | Adder |
| RoHS Compliant | true |
| Mounting | Direct Screw Mount |
| Ampere Rating Al | 250 A |
| Ampere Rating Cu | 310 A |
| Connector Material | Tin-plated Aluminum |
| Connector Type Primary | Box |
| Connector Type Secondary | Box |
| torque rating primary | 350-#6 275 in-lb |
| torque rating secondary | #6 28 in-lb; #8 25 in-lb; #10-#14 20 in-lb |
| Wire Range Primary | 350-#6 |
| Wire Range Secondary | #6-#14 |
| Dimensions | 43.7 mm x 78.2 mm x 82.6 mm |
| short circuit ratings/class cc | 100 kA with 30 A Fuse |
| short circuit ratings/class g | 100 kA with 60 A Fuse |
| short circuit ratings/class j | 100 kA with 400 A Fuse |
| short circuit ratings/class l | 100 kA with 400 A Fuse |
| short circuit ratings/class rk1 | 100 kA with 200 A Fuse |
| short circuit ratings/class rk5 | 100 kA with 100 A Fuse |
| short circuit ratings/standalone | 10 kA |
| short circuit ratings/class t | 100 kA with 400 A Fuse |
| openings per pole primary | 1 |
| openings per pole secondary | 10 |
| Insulating material | Glass Filled Polycarbonate |
