4050746
Official DistributorBy Rittal
SKU
RIT4050746
Weight
5 kg
Series Wire end ferrule on belt
Wire end ferrules According to DIN colour code

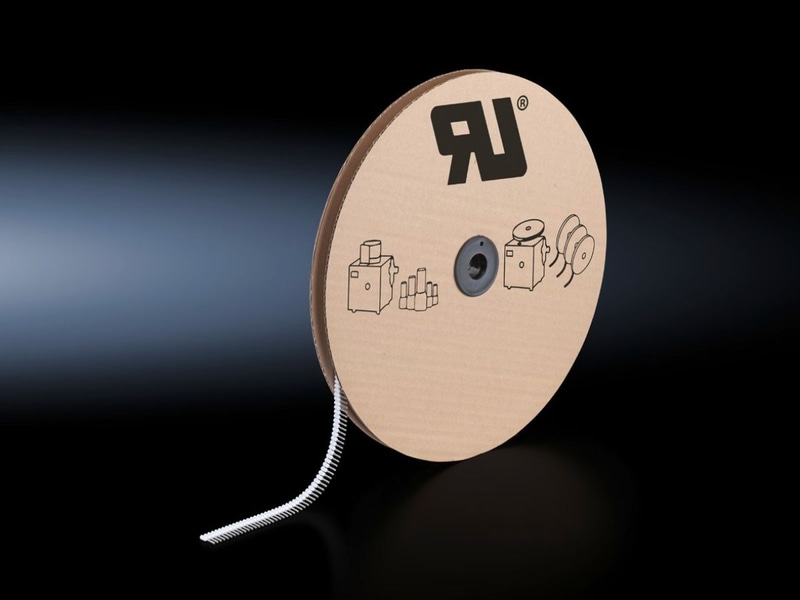

Wire end ferrule on belt
With plastic flange.
Technical Specifications
Material
| Plastic collar | Polypropylene |
| Technical specifications | Heat resistant up to 105 °C |
| Color | White |
| Length | 8 mm |
| AWG | 20 |
| Internal diameter | 2.6 mm |
| For cross section | 0.5 mm² |
| DIN color code | Yes |
| Note | UL-certified in conjunction with the relevant tools, e.g. crimping machines. |
| Standards | AEH DIN 46228 |
| Delivery form | Taped |
| Packaging unit | 5,000 pc(s). |
| Weight/packaging unit | 5 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177805149 |
| ETIM 7.0 | EC000005 |
| ECLASS 8.0 | 36659290 |
Why Proax for Rittal 4050746?
Proax is an authorized distributor of Rittal 4050746 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
