Phoenix Contact 1411357
AllConnectorsHeavy-duty connectors

1411357

Official Distributor

By Phoenix Contact

SKU
PHX1411357
MPN
HC-EVO-A10UT-BWSC-HH-M20-PLRBK
Weight
0.277 kg
This product is Not Cancellable/Not Returnable
Series HC-EVO-A

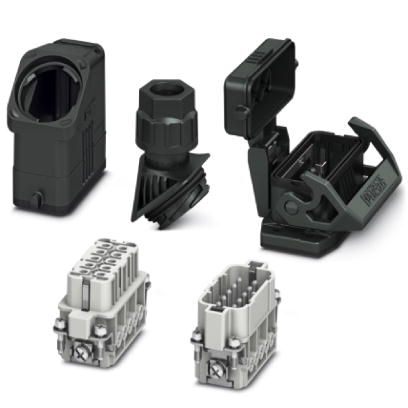

HC-EVO-A10UT-BWSC-HH-M20-PLRBK - Connector set

Connector set, number of positions: 10, material: PA, connection method: Screw connection, connection cross section: AWG 20- 14

Technical Specifications

General

Number of Positions10+PE
TypeD15
Connection MethodScrew connection
Degree of protection for housingIP66
Degree of protection for housing12 (UL 50e)
Connection technologyScrew connection
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current20 A
Conductor Cross Section0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules)
Connection cross section AWG20 ... 14
External Cable Diameter7 mm ... 13 mm
Ambient Temperature (Operation)-40 °C ... 100 °C
Length of the assembly cutout58 mm
Width of the assembly cutout24 mm
Housing MaterialPA
Contact carrier materialPC
Locking latch materialPA
Integrated protective coverYes

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Why Proax for Phoenix Contact 1411357?

Proax is an authorized distributor of Phoenix Contact 1411357 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
