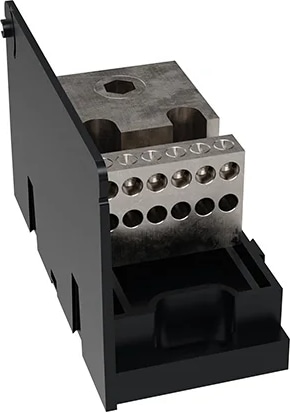

Name: MPDB69080
Brand: Mersen
SKU: MERMPDB69080
Price: 167.2400 CAD
Availability: BackOrder

Official Distributor

SKU

Weight

0.771 kg

Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A Adder 1 - 12 openings; 500-#4 --- #4-#14 Box to Box

Rated Voltage Ac Ul	1000 V
Rated Voltage Dc Ul	1000 V
Frequency	50/60 Hz
ac or dc	AC/DC
Number of Poles	Adder
Installation Mounting	Direct Screw Mount
Sell Pack Quantity	6 EA
sell pack weight	4.858 kg
Body Insulating Material	Glass Filled Polycarbonate
RoHS Compliant	true
Product group	Power Distribution Blocks
Product Width	65.5 mm
Product Length	144.8 mm
Product Height	90.2 mm
Ampere Rating Al	270 A
Ampere Rating Cu	350 A
Connector Material	Tin-plated Aluminum
item number	MPDB69080
ean upc code	782001451080
short circuit rating class cc	100 kA with 30A Fuse

short circuit rating class g	100 kA with 60A Fuse
short circuit rating class j	100 kA with 400A Fuse
short circuit rating class l	100 kA with 400A Fuse
short circuit rating class rk1	100 kA with 200A Fuse
short circuit rating class rk5	100 kA with 100A Fuse
Short Circuit Rating Standalone	10 kA
short circuit rating class t	100 kA with 400A Fuse
Number Of Openings Per Pole Primary	1
Number Of Openings Per Pole Secondary	12
Connector Type Primary	Box
Connector Type Secondary	Box
hole diameter primary	0.88 in
hole diameter secondary	0.27 in
torque rating primary	500-#4 500
torque rating secondary	#4-#8 40; #10-#14 35
Wire Range Primary	500-#4
Wire Range Secondary	#4-#14
hex screw size and type primary	13/16-16 x 1.06
hex screw size and type secondary	5/16-24 x .38
