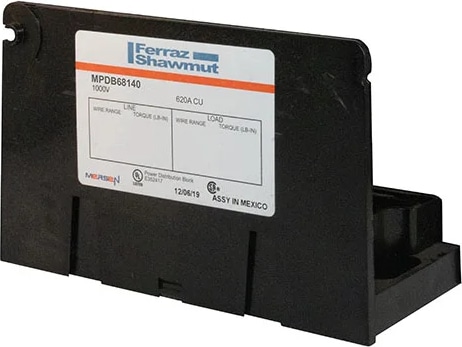

Name: MPDB68140
Brand: Mersen
SKU: MERMPDB68140
Price: 708.5400 CAD
Availability: BackOrder

Official Distributor

SKU

Weight

1.588 kg

Open-Style PDB UL 1953 1000V Tin‑plated Copper - 620A Adder 2 - 12 openings; 350‑#6 --- #4‑#14 Box to Box

Rated Voltage Ac Ul	1000 V
Rated Voltage Dc Ul	1000 V
Frequency	50/60 Hz
ac or dc	AC/DC
Number of Poles	Adder
Installation Mounting	Direct Screw Mount
Sell Pack Quantity	6 EA
sell pack weight	10.0017 kg
Body Insulating Material	Glass Filled Polycarbonate
RoHS Compliant	Yes
Product Width	65.5 mm
Product Length	144.8 mm
Product Height	90.2 mm
Sell Pack Width	101.6 mm
Sell Pack Length	144.5 mm
sell pack height	450.8 mm
Ampere Rating Cu	620 A
Connector Material	Tin‑plated Copper
short circuit rating class cc	100 kA with 30A Fuse

short circuit rating class g	100 kA with 60A Fuse
short circuit rating class j	100 kA with 600A Fuse
short circuit rating class l	100 kA with 800A Fuse
short circuit rating class rk1	100 kA with 600A Fuse
short circuit rating class rk5	100 kA with 600A Fuse
Short Circuit Rating Standalone	10 kA
short circuit rating class t	100 kA with 800A Fuse
Number Of Openings Per Pole Primary	2
Number Of Openings Per Pole Secondary	12
Connector Type Primary	Box
Connector Type Secondary	Box
hole diameter primary	0.75 in
hole diameter secondary	0.27 in
torque rating primary	350‑#6 275
torque rating secondary	#4‑#6 45; #8 40; #10‑#14 35
Wire Range Primary	350‑#6
Wire Range Secondary	#4‑#14
hex screw size and type primary	11/16‑16 x .88
hex screw size and type secondary	5/16‑24 x .38
