NCDA1X500-0400
Official DistributorBy SMC
SKU
SMCNCDA1X5000400
Weight
9.312 kg

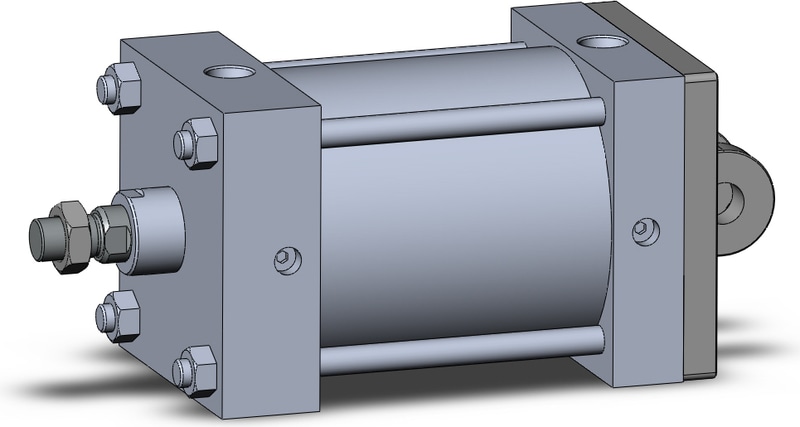

Medium Duty Air Cylinder, No Auto Switch, Standard Cylinder, Double Rear Clevis Mount (MP1), 5" Bore (Extended Series), 4.00" Stroke
Technical Specifications
| Series | NCDA1 (Standard w/ Magnet) |
| Mounting | X (MP1, Double Rear Clevis) |
| Bore Size | 500 (5" - Large Bore) |
| Stroke | 0400 (4") |
| Air Cushion / Rod Boot | Both Ends (Air Cushion) |
| Thread | Nil (Small Male, Standard, Threaded) |
| Adjustment Range | Not Applicable |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| X Option | None |
SMC eTechin NCA1
NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Double Rod, Non-Rotating, Oversized Rod, Large Bore w/OptionsSMC Core Product- NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Temperature Resistant Options
NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Stroke Options
NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Environment Options
NC(D)A1 NFPA, Air Cylinder, Double or Single Rod, Dual Operation
NCA1, Accessory, Eye Bracket
NCA1, Accessory, Single Rod Clevis
NCA1, Accessory, Double Rod Clevis
NCA1, Accessory, Foot Mounting (MS1)
NCA1, Accessory, Flange Mounting (MF1)
NCA1, Accessory, Double Clevis Mounting (MP2)
NCA1, Accessory, Single Clevis Mounting (MP4)
NCA1, Accessory, Side Lug Mounting (MS2)
NCA1, Accessory, Double Clevis Mounting (MP1)
NCA1 Standard Seal Kits
Why Proax for SMC NCDA1X500-0400?
Proax is the Elite distributor of SMC NCDA1X500-0400 and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | NCDA1X5000400 |
| Pack Size | 1 |
