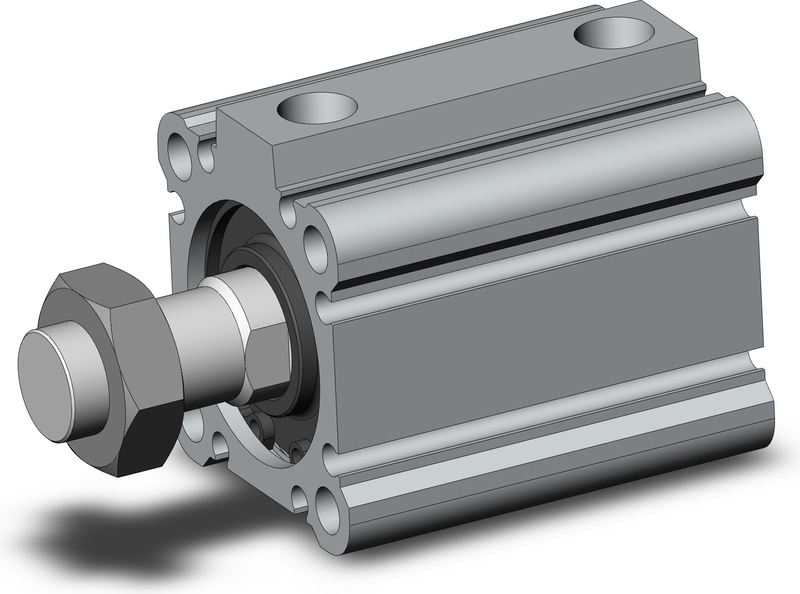

CDQ2A32TF-25DCMZ

The CDQ2A32TF-25DCMZ is a compact, double-acting pneumatic cylinder designed for space-efficient and reliable motion control. From SMC’s enhanced CQ2 Z Series, it features a 32 mm bore and 25 mm stroke, ideal for industrial automation where size, weight, and precision matter.

Key Features

• Compact Body Design – Space-saving solution for tight installations

• 32 mm Bore Size with 25 mm Standard Stroke

• Built-in Magnet – Compatible with auto switches for position detection

• Rubber Bumper & Rod End Male Thread (Body Option: CM)

• 4-Side Auto Switch Mounting for Φ32+ sizes (2 sides for smaller bores)

• Tapped Ends Mounting Style for easy installation

• Lightweight Build – 5–13% lighter than previous CQ2 series

• G Thread Ports (TF) for broad pneumatic compatibility

• No Auto Switch Included (optional upgrade available)
