NCDA1X600-2400-M9PWVMBPC
Official DistributorBy SMC
SKU
SMCNCDA1X6002400M9PWVMBPC
Weight
22.72 kg
This item is ineligible for free shipping due to its size/weight.

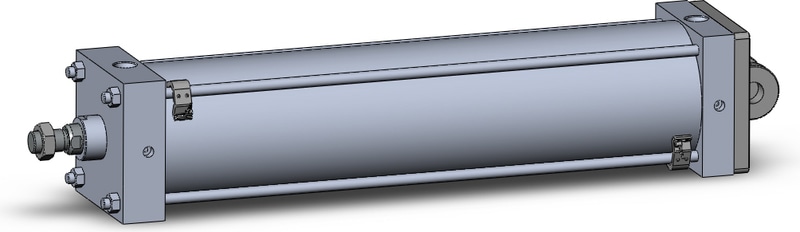

TIE ROD CYLINDER, Cylinder, NCA1, Tie Rod
Technical Specifications
| Series | NCDA1 (Standard w/ Magnet) |
| Mounting | X (MP1, Double Rear Clevis) |
| Bore Size | 600 (6" - Large Bore) |
| Stroke | 2400 (24") |
| Air Cushion / Rod Boot | Both Ends (Air Cushion) |
| Thread | Nil (Small Male, Standard, Threaded) |
| Adjustment Range | Not Applicable |
| Auto Switch | M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical |
| Lead Wire or Prewired Connector | MBPC (1.0m Cord Length, M8-4 Pin Connector) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| X Option | None |
Why Proax for SMC NCDA1X600-2400-M9PWVMBPC?
Proax is the Elite distributor of SMC NCDA1X600-2400-M9PWVMBPC and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | NCDA1X6002400M9PWVMBPC |
| Pack Size | 1 |
