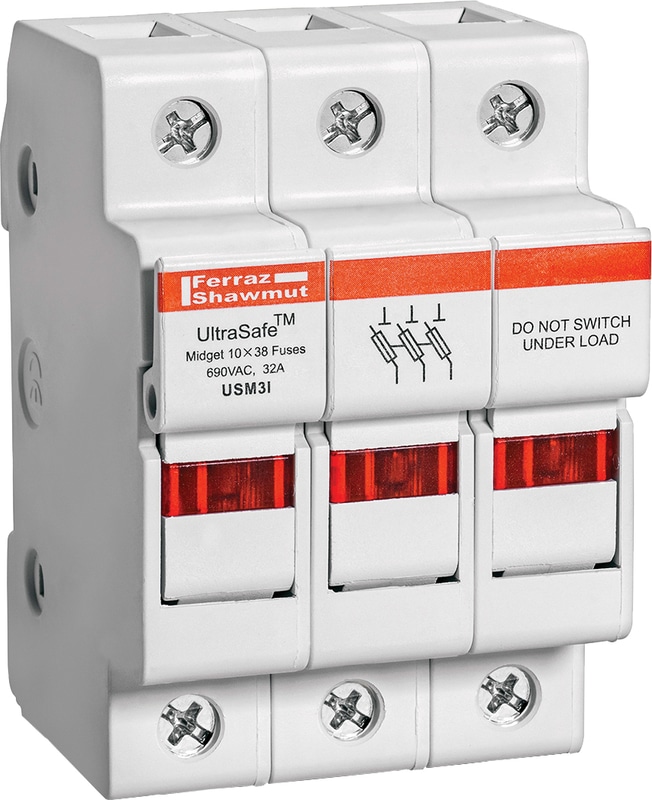

USM3I
Official DistributorBy Mersen
UltraSafe™ USM - Midget Fuse Holders
Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features
- IP20 Finger-Safe (touch safe)
- Optional visual blown fuse Indicator lights
- DIN-rail mounting
- Compact footprint
- Quick, tool-free, easy fuse change outs
- USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M
Applications
- All circuits up to 600 volts for motors, control circuits, transformers, etc…
- DC circuits up to 1000VDC including photovoltaic applications
- Non-load disconnect
| Ampere Rating | 30 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 58.9 mm |
| Product Length | 78 mm |
| Product Width | 52.6 mm |
| Product Weight | 0.195 kg |
| Fuse Class | Midget |
| Fuse Type Class | Midget |
| Indication System | 0 |
| Indication System Type | LED |
| Max Fuse Rating | 30 A |
| Installation Mounting | DIN Rail |
| Number of Poles | 3-Pole |
| Wire Connections | Pressure Plate |
| Wiring Range | #6 to #14 Solid or Stranded |
| Short Circuit Current Rating Sccr | 100 kA |
