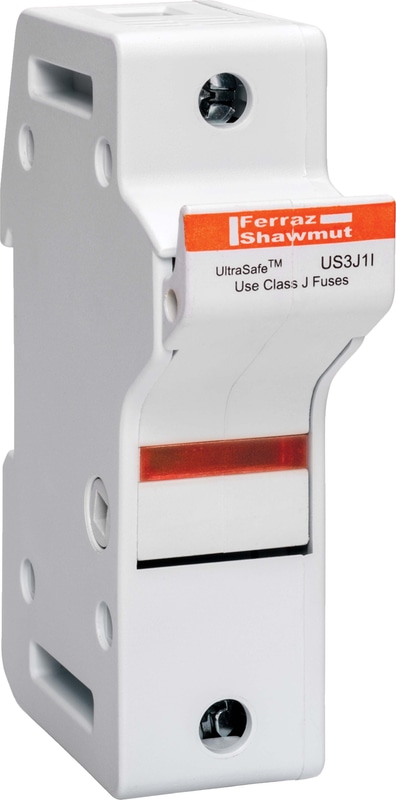

US3J - Class J
Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe” to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. The US6J is for 60A Class J fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units, with or without blown-fuse indicators in each pole. Multi-pole units can also be made up in the field by using the multiplepole Assembly Kits. All units have provisions for locking in the open position for safety during fuse changeouts or equipment servicing. US3J and US6J holders can be snap-mounted to 35 mm DIN-rail and they have a unique latch which will stay open to allow re-positioning of the holder in the future. UltraSafe body material is tough and durable polyamide. *Holder not UL listed when installed with French Ferrule fuses. RECOMMENDED FUSE USAGE: *US3J, US6J use with AJT, A4J, HSJ
Features
- Finger-safe IP20 protection
- Optional indicator lights
- DIN-rail mount
- Compact footprint
- Quick, easy fuse change
Applications
- 600 volt motors, transformers, lighting, heating, control circuits, general loads
- Non-load disconnect
| Ampere Rating | 30 A |
| Sell Pack Length | 210.1 mm |
| Sell Pack Width | 121.9 mm |
| Sell Pack Quantity | 6 EA |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 80 mm |
| Product Length | 114 mm |
| Product Width | 32.5 mm |
| Product Weight | 0.2087 kg |
| Fuse Type Class | Class J |
| Indication System Type | LED |
| Indication System | 1 |
| Max Fuse Rating | 30 A |
| Installation Mounting | DIN Rail |
| Body Insulating Material | Polyamide |
| Number of Poles | 1-pole |
| Wire Connections | Pressure Plate |
| Wiring Range | #2 to 14 AWG |
| Short Circuit Current Rating Sccr | 200 kA |
