TRM5
Official DistributorBy Mersen
SKU
MERTRM5
Series TRM - Midget - Time-Delay

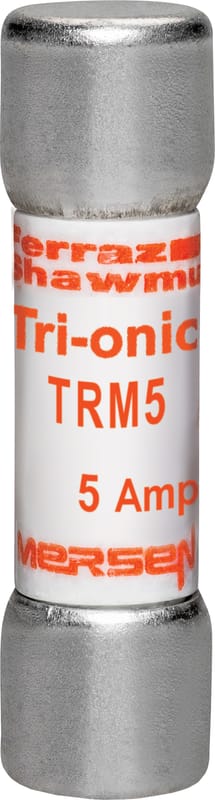

Fuse TRM - Midget - Time-Delay 250VAC 5A Ferrule Tri-Onic®
Documents
TRM - Midget - Time-Delay
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- Numerous ratings for a wide variety of applications
- 250VAC rating in all sizes up to 30A
- Time-delay for circuits with high inrush currrent
- Can be used with UltraSafeTM fuse holders
- 1 1/2" x 13/32" (10mm x 38mm) dimensions
Applications
- Small motors
- Small transformers
- Lighting circuits
- Control circuits
Technical Specifications
| Ampere Rating | 5 A |
| Ac - Dc - Ac Dc | AC |
| Rated Voltage Ac Ul | 250 V |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Product Weight | 0.0054 kg |
| Fuse Class | Midget |
| Indication System | 0 |
| Speed Characteristic | Time Delay |
| Mounting | Clip |
| Connection Terminal Type | Ferrule |
| Connection Terminal Material | Tin-Plated Copper |
| Body Insulating Material | GMG |
Why Proax for Mersen TRM5?
Proax is the authorized distributor of Mersen TRM5. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
