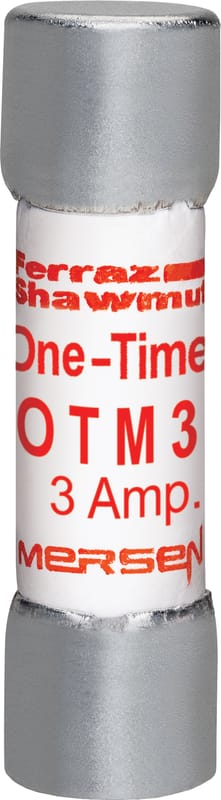

OTM3
Official DistributorBy Mersen
SKU
MEROTM3
Series OTM - Midget - Fast-Acting
Fuse OTM - Midget - Fast-Acting 250VAC 3A Ferrule Amp-Trap®
Documents
OTM - Midget - Fast-Acting
One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
Features
- Low cost and fully rated for economy without compromise
- Can be used with UltraSafe™ fuse holders
- 1 1/2" x 13/32" (10 mm x 38 mm) dimensions
Applications
- Supplemental protection of circuits up to 250VAC and 10kA
Technical Specifications
| Ampere Rating | 3 A |
| Ac - Dc - Ac Dc | AC |
| Rated Voltage Ac Ul | 250 V |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Product Weight | 0.0054 kg |
| Fuse Class | Midget |
| Indication System | 0 |
| Speed Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection Terminal Type | Ferrule |
| Connection Terminal Material | Tin-Plated Copper |
| Body Insulating Material | Paper |
Why Proax for Mersen OTM3?
Proax is the authorized distributor of Mersen OTM3. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
