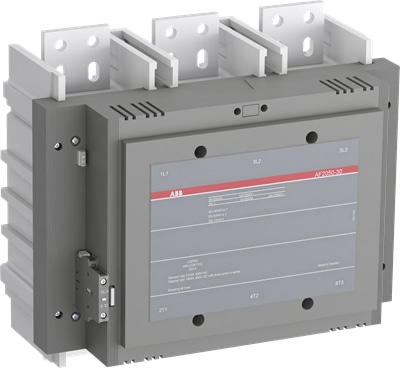

AF2050-30-11-70
Official DistributorBy ABB
SKU
ABBAF2050301170
MPN
1SFL707001R7011
Weight
33 kg
This item is ineligible for free shipping due to its size/weight.
Series AF 3-pole Contactors
The AF2050-30-11-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2050 A (AC-1) or 2100 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
AF 3-pole Contactors
ABB's AF series includes a variety of 3-pole contactors designed for controlling 3-phase motors and power circuits. These contactors are categorized into several sub-series based on their current ratings and applications.
Each sub-series features integrated electronic coils that reduce energy consumption by up to 80%, provide surge protection, and allow operation across wide voltage ranges without coil changes. ABB also offers auxiliary contact blocks and accessories to enhance functionality
Technical Specifications
Supplier Information - USABB251
| Country or Territory of Origin | United States |
| Lead Time | 24 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | USABB251EXPU |
| Warranty Return | Product under warranty must be returned |
Supplier Information - USINY
| Lead Time | 27 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | USSVCEXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 438 mm |
| Product Net Depth / Length | 244 mm |
| Product Net Height | 392 mm |
| Product Net Weight | 33 kg |
| Dimension Diagram | 53540930-7 |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2050 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 2050 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 55 °C 1750 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 70 °C 1500 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 2050 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 1750 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 1500 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 1060 A |
| Rated Operational Current AC-3 (Ie) | (440 V) 55 °C 1060 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 970 A |
| Rated Operational Current AC-3 (Ie) | (690 V) 55 °C 970 A |
| Rated Operational Current AC-3 (Ie) | (1000 V) 55 °C 425 A |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 1060 A |
| Rated Operational Current DC-1 (Ie) | (220 V) 3 Poles in Series, 40 °C 2050 A |
| Rated Operational Current DC-1 (Ie) | (600 V) 3 Poles in Series, 40 °C 2050 A |
| Rated Operational Current DC-1 (Ie) | (850 V) 3 Poles in Series, 40 °C 2050 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 630 kW |
| Rated Operational Power AC-3 (Pe) | (440 V) 710 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) 1000 kW |
| Rated Operational Power AC-3 (Pe) | (1000 V) 630 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2200 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 7500 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 12000 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 10000 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 5500 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 60 cycles per hour |
| Mechanical Durability | 0.5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz / 60 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | 60 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 100 ... 250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A |
| Power Loss | at Rated Operating Conditions per Pole 125 W |
| Operate Time | Between Coil De-energization and NC Contact Closing 35 ... 55 ms |
| Operate Time | Between Coil De-energization and NO Contact Opening 35 ... 55 ms |
| Operate Time | Between Coil Energization and NC Contact Opening 50 ... 80 ms |
| Operate Time | Between Coil Energization and NO Contact Closing 50 ... 80 ms |
| Connecting Capacity Main Circuit | Bar 100 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 2x0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 2 x 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Stranded 1 x 1 .... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Stranded 2 x 1 .... 4 mm² |
| Connecting Capacity | Bar 100 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Connecting Terminals (delivered in open position) Main Poles | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
| Recommended Screw Driver | Main Circuit M12 |
| Recommended Screw Driver | Control Circuit Pozidriv 2 |
| Recommended Screw Driver | Control Circuit M3.5 |
| Tightening torque | Cable Lug 45 N·m |
| Tightening torque | Main Circuit 45 N·m |
| Terminal Type | Main Circuit: Bars |
| Suitable for Product Class | Block ContactorsBlock Contactors |
| Product Name | Block Contactor |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V |
| General Use Rating UL/CSA | (1000 V AC) 2100 A |
| General Use Rating UL/CSA | (600 V AC) 2100 A |
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SFC100112M0005 |
| Environmental Product Declaration - EPD | 1SFC100110D0201 |
| Environmental Product Declaration - EPD | 2TFP200026A1001 |
