HSJ20
Official DistributorBy Mersen
SKU
MERHSJ20
Series HSJ - Class J - High-Speed

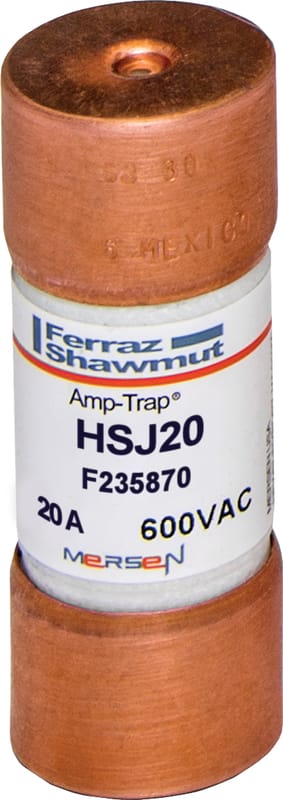

Fuse HSJ - Class J - High-Speed 600VAC 500VDC 20A Ferrule Amp-Trap®
Documents
HSJ - Class J - High-Speed
The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
Features
- Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
- Low I2t (low thermal energy)
- Excellent cycling ability for frequent starts/stops without nuisance opening
Applications
- Branch circuits
- Control panels
- Electronic motor controllers
- Phase controllers
- Drives
- Soft-starters
- Solid state relays
Technical Specifications
| Ampere Rating | 20 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 500 V |
| Product Diameter | 20.7 mm |
| Product Length | 57.2 mm |
| Product Weight | 0.0544 kg |
| Fuse Class | Class J |
| Indication System | 0 |
| Speed Characteristic | High Speed |
| Mounting | Clip |
| Connection Terminal Type | Ferrule |
| Connection Terminal Material | Tin-Plated Copper |
| Body Insulating Material | GMG |
Why Proax for Mersen HSJ20?
Proax is the authorized distributor of Mersen HSJ20. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
