GGC10
Official DistributorBy Mersen
SKU
MERGGC10
Weight
0.005 kg
Series GGC - Fast-Acting

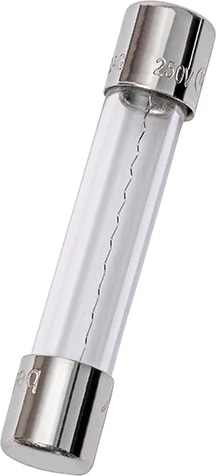

Miniature fuse GGC - Fast-Acting 250VAC 10A Size 6,3x32 Ferrule
Documents
GGC - Fast-Acting
Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
Features
- Glass body
- Fast-acting
- 1/4" x 1-1/4"
Applications
- Electronic circuits
Technical Specifications
| Rated Voltage Ac Ul | 250 V |
| Ampere Rating | 10 A |
| ac or dc | AC |
| Fuse Class | Supplemental |
| Sell Pack Quantity | 5 EA |
| sell pack weight | 0.0238 kg |
| Body Insulating Material | Glass |
| Product group | Miniature Fuses |
| Product Length | 31.8 mm |
| Sell Pack Width | 38.1 mm |
| Sell Pack Length | 31.8 mm |
| sell pack height | 6.4 mm |
| Speed Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection Terminal Type | Ferrule |
| Product Diameter | 6.4 mm |
| Fuse Size | 6.3 × 32 mm |
Why Proax for Mersen GGC10?
Proax is the authorized distributor of Mersen GGC10. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
