Cable Routes

Provides suspended overhead cable management from cabinet to cabinet. Attaches to roof mount ladder rack or end ladder brackets. 12in wide and 10ft long.

Cable management wall with attachment points for tool-less quarter turn cable management accessories, T cutouts for hook and loop cable managers, and dual PDU mounting capability.

TS IT 0800W ROOF MT CABLE MGR TS IT 0800W ROOF MOUNT CABLE MANAGER, RAL9005

End plate mounts to Roof Mount Cable Manager to shield view of cabling. One kit needed per row of Roof Mount Cable Manager.

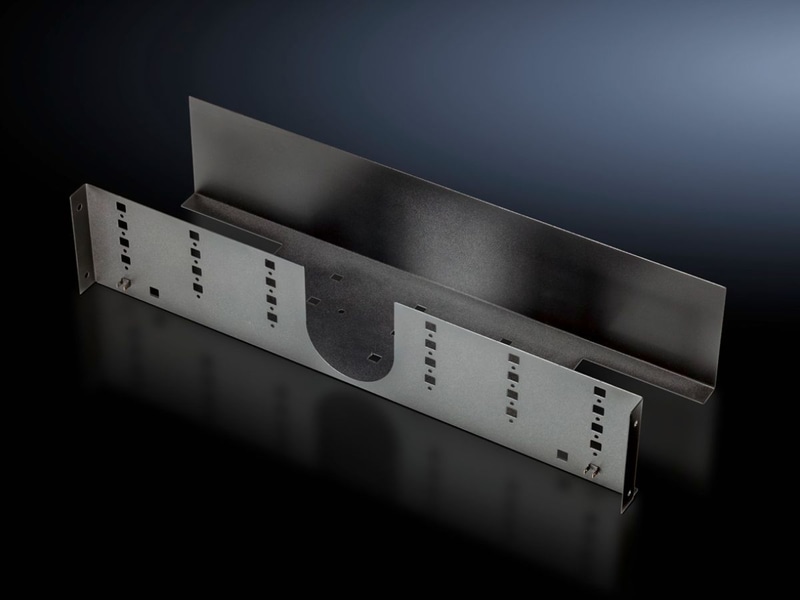

Organizes overhead cable runs between racks and cable access slots in the enclosure roof. Mounts to enclosure roof in front or rear.

Organizes overhead cable runs between racks and cable access slots in the enclosure roof. Mounts to enclosure roof in front or rear.

DK Cable route on the mounting frame, WxH: 100x1700 mm

Required when ladder rack is attached at the end of the roof mount cable managers.

DK Cable route, WxH: 115x2000 mm, For TS, RAL 9005

TS System supports for cable routes, Support height 102 mm

For direct attachment between the roof and base frame of a 2000 mm high enclosure. May be installed on the inner or outer mounting level. Route width 200 mm. With unique hole profile for securing various cable routing and management accessories.

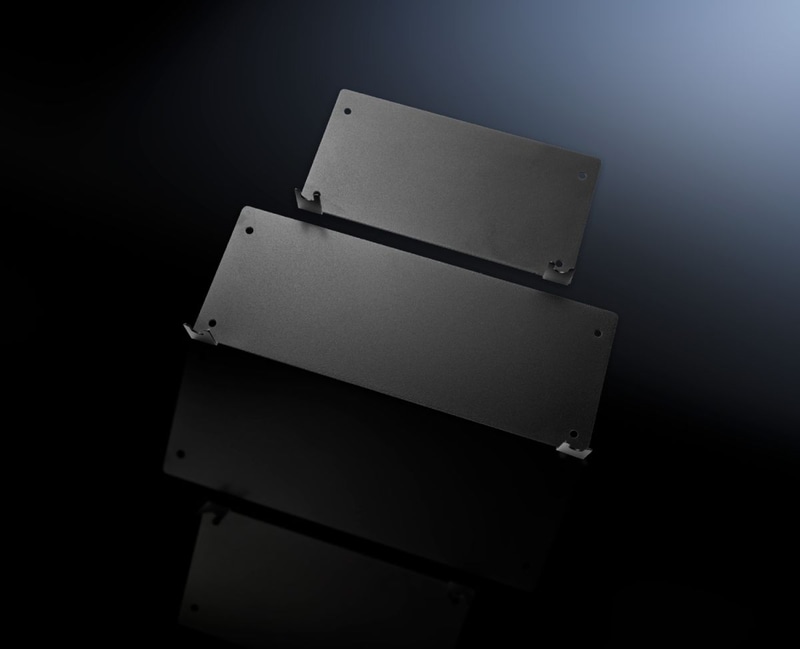

End covers and installation brackets for roof mount cable managers

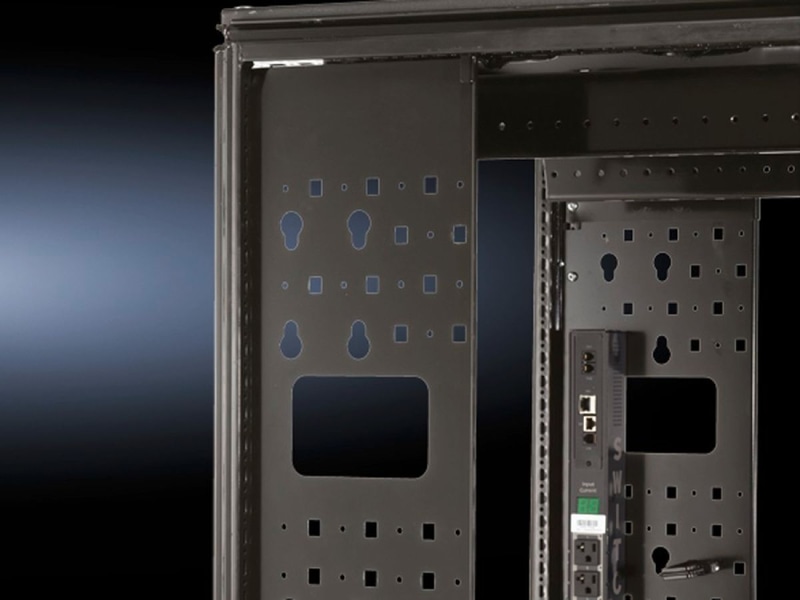

The cable management wall sits at the rear of the enclosure. Various quarter turn cable management accessories and PDUs can be installed with its unique hole pattern.

The cable management wall sits at the rear of the enclosure. Various quarter turn cable management accessories and PDUs can be installed with its unique hole pattern.
