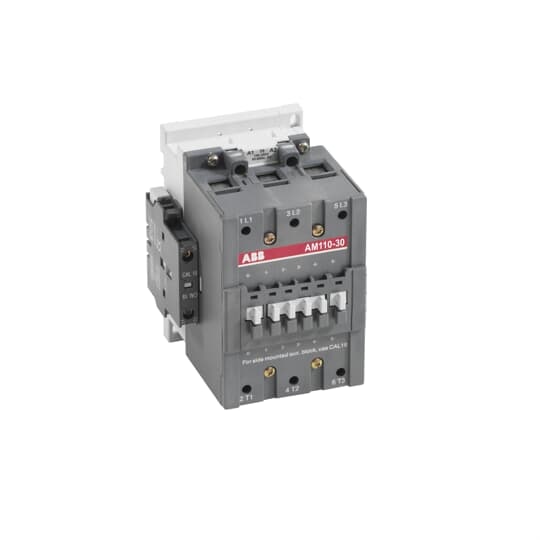

AM110-30-22-78
Distributeur OfficielBy ABB
SKU
ABBAM110302278
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Magnetically latch, control voltage 110-125 V, AC/DC latch
Spécifications techniques
Dimensions
| Produit Largeur Net | 90 mm |
| Produit Longueur Net | 156.5 mm |
| Produit Hauteur Net | 148 mm |
| Poids net | 1,8 kg |
Technique
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Tension | Circuit principal 1000 V |
| Fréquence assignée (f) | Circuit principal 50 / 60 Hz |
| Courant thermique conventionnel à l’air libre (Ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 160 A |
| Courant assignée d’emploi AC-1 (Ie) | (690 V) 40 °C 160 A, (690 V) 55 °C 145 A, (690 V) 70 °C 130 A |
| Courant assignée d’emploi AC-3 (Ie) | (415 V) 55 °C 110 A, (440 V) 55 °C 100 A, (500 V) 55 °C 100 A, (690 V) 55 °C 82 A, (1000 V) 55 °C 30 A, (380 / 400 V) 55 °C 110 A, (220 / 230 / 240 V) 55 °C 110 |
| Puissance assignée d’emploi AC-3 (Pe) | (415 V) 59 kW, (440 V) 59 kW, (500 V) 59 kW, (690 V) 75 kW, (1000 V) 40 kW, (380 / 400 V) 55 kW, (220 / 230 / 240 V) 30 kW |
| Pouvoir assigné de coupure AC-3 | 8 x Ie AC-3 |
| Pouvoir assigné de fermeture AC-3 | 10 x Ie AC-3 |
| Dispositif de protection contre les courts-circuits | gG Type Fuses 160 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour |
| Courant assignée d’emploi DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 160 A, (220 V) 3 Poles in Series, 40 °C 160 A |
| Courant assignée d’emploi DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 160 A, (220 V) 3 Poles in Series, 40 °C 160 A |
| Courant assignée d’emploi DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 160 A, (220 V) 3 Poles in Series, 40 °C 160 A |
| Tension assignée d’isolement (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 8 kV |
| Durabilite mecanique | 10 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Plage d'utilisation de la bobine selon | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V, 60 Hz 48 ... 130 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 400 W |
| Durée de fonctionnement nominale | Entre la mise hors tension de la bobine et la fermeture du contact NC (normally closed) 60 ... 130 ms, Entre la mise hors tension de la bobine et l'ouverture du contact NO (normally open) 55 ... 125 ms, Entre la mise sous tension de la bobine et l'ouverture du contact NC 27 ... 77 ms, Entre la mise sous tension de la bobine et la fermeture du contact NO 30 ... 80 ms |
| Connecting Capacity Main Circuit | Bar 30 mm², Flexible with Cable End 2 x 6 ... 35 mm², Rigid 2 x 6 ... 65 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm² |
| Indice de protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Connecting Terminals (delivered in open position) Main Poles | M8 hexagon socket screw with single connector |
| Type de borne | Cable Clamp |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V |
| Puissance nominale UL/CSA | (200 V AC) Three Phase 30 hp, (208 V AC) Three Phase 30 hp, (220 ... 240 V AC) Three Phase 40 hp, (440 ... 480 V AC) Three Phase 75 hp, (550 ... 600 V AC) Three Phase 100 hp |
Environnement
| Température de l’air ambiant | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C |
| Altitude de fonctionnement maximale autorisée | Without Derating 3000 m |
| Résistance aux chocs selon CEI 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 10 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g |
| Statut RoHS | Following EU Directive 2011/65/EU |
