Distributeur OfficielBy ABB
SKU
Weight
1.075 kg

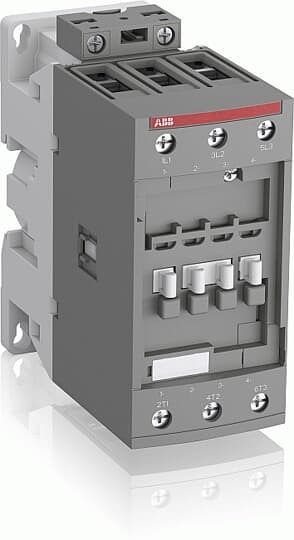

The AF52-30-00-41 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Spécifications techniques
Dimensions
| Produit Largeur Net | 55 mm |
| Produit Longueur Net | 111 mm |
| Produit Hauteur Net | 125,5 mm |
| Poids net | 0,97 kg |
Technique
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Tension | Circuit principal 690 V |
| Fréquence assignée (f) | Circuit principal 50 / 60 Hz |
| Courant thermique conventionnel à l’air libre (Ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A |
| Courant assignée d’emploi AC-1 (Ie) | (690 V) 40 °C 100 A, (690 V) 60 °C 80 A, (690 V) 70 °C 70 A |
| Courant assignée d’emploi AC-3 (Ie) | (415 V) 60 °C 53 A, (440 V) 60 °C 53 A, (500 V) 60 °C 45 A, (690 V) 60 °C 35 A, (380 / 400 V) 60 °C 53 A, (220 / 230 / 240 V) 60 °C 53 A |
| Courant assignée d’emploi AC-3e (Ie) | (415 V) 60 °C 53 A, (440 V) 60 °C 53 A, (500 V) 60 °C 45 A, (690 V) 60 °C 35 A, (380 / 400 V) 60 °C 53 A, (220 / 230 / 240 V) 60 °C 53 A |
| Puissance assignée d’emploi AC-3 (Pe) | (400 V) 22 kW, (415 V) 30 kW, (440 V) 30 kW, (500 V) 30 kW, (690 V) 30 kW, (380 / 400 V) 22 kW, (220 / 230 / 240 V) 15 kW |
| Puissance assignée d’emploi AC-3e (Pe) | (415 V) 30 kW, (440 V) 30 kW, (500 V) 30 kW, (690 V) 30 kW, (380 / 400 V) 22 kW, (220 / 230 / 240 V) 15 kW |
| Courant assigné de courte durée admissible (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A, for 1 s -empty- A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 1200 cycles per hour |
| Tension assignée d’isolement (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V |
| Tension assignée de tenue aux chocs (Uimp) | 6 kV |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V, 60 Hz 24 ... 60 V, DC Operation - |
| Durée de fonctionnement nominale | Entre la mise hors tension de la bobine et la fermeture du contact NC (normally closed) 19 ... 105 ms, Entre la mise hors tension de la bobine et l'ouverture du contact NO (normally open) 17 ... 100 ms, Entre la mise sous tension de la bobine et l'ouverture du contact NC 38 ... 95 ms, Entre la mise sous tension de la bobine et la fermeture du contact NO 42 ... 100 ms |
| Montage sur rail DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied) | 2 x M4 or 2 x M6 screws placed diagonally |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 4 ... 35 mm², Flexible with Insulated Ferrule 1/2x 4 ... 35 mm², Rigid 1/2x 6 ... 3 5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Main Circuit 16 mm |
| Indice de protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Type de borne | Bornes à vis |
Technique UL/CSA
| General Use Rating UL/CSA | (600 V AC) 80 A |
| Puissance nominale UL/CSA | (120 V AC) Single Phase 3 hp, (200 ... 208 V AC) Three Phase 15 hp, (220 ... 240 V AC) Three Phase 20 hp, (240 V AC) Single Phase 10 hp, (440 ... 480 V AC) Three Phase 40 hp, (550 ... 600 V AC) Three Phase 50 hp |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb, Main Circuit 35 in·lb |
Environnement
| Température de l’air ambiant | Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Altitude de fonctionnement maximale autorisée | Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5 ... 300 Hz 3 g closed position / 3 g open position |
| Résistance aux chocs selon CEI 60068-2-27 | Closed, Shock Direction: A 25 g, Closed, Shock Direction: B1 25 g, Closed, Shock Direction: B2 15 g, Closed, Shock Direction: C1 25 g, Closed, Shock Direction: C2 25 g, Open, Shock Direction: B1 5 g |
| Statut RoHS | Following EU Directive 2011/65/EU |
Pourquoi Proax pour ABB AF52-30-00-41?
Proax est un distributeur autorisé de ABB AF52-30-00-41 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Autres noms | AF52300041 |
| Taille de l'emballage | 1 |
