1SBN050020R1000

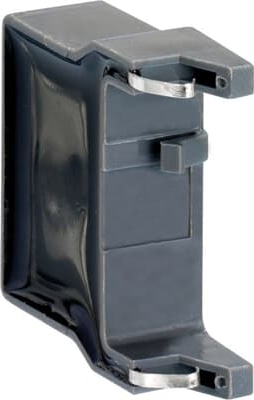

RT5/32 is a transil diode surge suppressor designed to reduce the maximum overvoltage peak value and to limit or even completely eliminate the high pre-damping voltage frequencies, when used or with a DC operated conventional contactor for a rated control circuit voltage between 12 ... 32 V DC.
The operation of inductive circuits causes overvoltages, in particular on opening of the contactor coil. The electromagnetic energy stored in the coil during contactor closing is restored on opening in the form of surges, the slope and amplitude of which may rise to several kilovolts. A number of drawbacks are observed ranging from interference on the electronic devices to breakdown of insulators and even destruction of certain sensitive components.
Advantages:
- the surge suppressor is clipped onto the top or side part in regards with the contactor or contactor relay base design without change in device overall dimensions.
- good energy absorption - Unpolarized system - Simple, reliable system
- very fast clipping: attenuation of steep fronts and thus of high frequencies. No operating delays.
Drawback: a certain delay on drop out which does not however reduce contactor breaking capacity.
Documents
Spécifications techniques
Dimensions
| Produit Largeur Net | 30.25 mm |
| Produit Longueur Net | 32,4 mm |
| Produit Hauteur Net | 10,5 mm |
| Poids net | 0,015 kg |
Technique
| Type de montage | Clipped onto the top or bottom part of the contactor or contactor relay |
| Rated Control Circuit Voltage (Uc) | DC Operation 12 ... 32 V DC |
| Adapté pour | ASL09, ASL12, ASL16, NSL22E, NSL31E, NSL40E, NSL44E, NSL53E, NSL62E, NSL71E, NSL80E, VASL09, VASL12, VASL16, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GAE75, NL22E, NLZ22E, NL31E, NLZ31E, NL40E, NLZ40E, NL44E, NL53E, NL62E, NL71E, NL80E, NL33/11, NL51/11, TNL22E, TNL31E, TNL40E, TNL44E, TNL62E, TNL80E |
Environnement
| Température de l’air ambiant | Operation -20 ... +70 °C |
| Informations RoHS | 2CMT2021-006277 |
| DEEE B2C / B2B | Business To Business |
Pourquoi Proax pour ABB RT5/32?
Proax est un distributeur autorisé de ABB RT5/32 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Autres noms | RT532 |
| Taille de l'emballage | 2 |
