Spécifications techniques
| Application | Convient comme sectionneur de moteur ou sectionneur de panneau de contrôle industriel sur l'équipement d'entrée de service, les tableaux, les tableaux de distribution, l'équipement de contrôle industriel, les centres de contrôle de moteur, etc. |
| Profondeur | 90 mm |
| Hauteur | 131 mm |
| Montage | Porte |
| Nombre de pôles | 3 |
| Taille | 127 x 131 x 90 mm |
| Dossier spécial | Mécanisme de freinage rapide |
| Normes | BV, CE, DNV, GL, RoHs |
| Largeur | 127 mm |

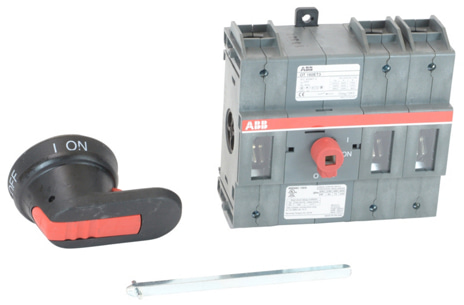

Pourquoi Proax pour ABB OT160ET3?
Proax est un distributeur autorisé de ABB OT160ET3 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Taille de l'emballage | 1 |
Recommandé
OT switch-disconnectors are suitable for a wide range of demanding applications such as machinery, power distribution, switchboards and motor control center installations. These devices are globaly available and comply with all relevant standards. The complete OT range is available from 16A to 4000A for IEC and 16A to 2000A for UL market. Thanks to their modular structure from 160A and upward, they also help to create purpose-built solutions with the right pole configuration and can be equipped with direct mount handles or side-operated. The smart design eliminates also the need of major customization for busbar connections which saves costs. The switches can be found in both manual and motorized applications. The complete range also include a comprehensive range of inbuilt safety features and offers snap-on accessories that saves installation time and costs.
3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
Encl. Switch Disconnector, 4-p. 415V AC23 160A, 88kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.
Safety switch, 3-p. 415V AC23 160A, 80kW. Mounted auxiliary contact: 2NO1NC. Stainless steel enclosure. IP65. StainlessSteel Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure and handle of the OT series is made of rigid acid proof steel, class AISI316L. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. The cover has also a gas pressure releaf function, to protect the user in case of internal arc. Suitable for outdoor and indoor use. The cable entries holes are prepared for cable flanges. The cable flanges (KOT61007 or KOT62296 (for EMC)) and the covers for the holes (KOT61008), have to be bought separately. The switch can be used in EMC applications, if EMC ring flanges are used. PE terminals and auxiliary contacts are included.
4-pole, front operated, door mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
3-pole, front operated, door mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
3-pole, front operated, door mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
