Distributeur OfficielBy ABB
SKU
Weight
2.032 kg
Series AF 3-pole Contactor Series

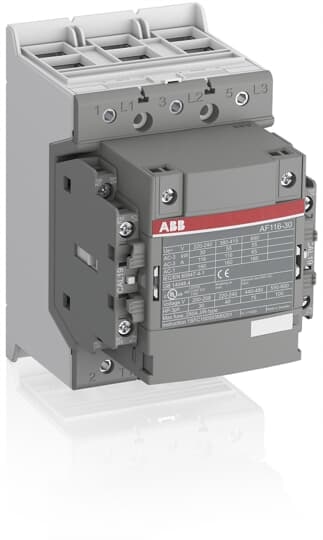

The AF116-30-22-12 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switching power circuits up to 160 A (AC-1) or 160 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
AF 3-pole Contactor Series
ABB's AF series includes a variety of 3-pole contactors designed for controlling 3-phase motors and power circuits. These contactors are categorized into several sub-series based on their current ratings and applications.
Each sub-series features integrated electronic coils that reduce energy consumption by up to 80%, provide surge protection, and allow operation across wide voltage ranges without coil changes. ABB also offers auxiliary contact blocks and accessories to enhance functionality
Spécifications techniques
Dimensions
| Produit Largeur Net | 90 mm |
| Produit Longueur Net | 126 mm |
| Produit Hauteur Net | 150 mm |
| Poids net | 1,55 kg |
Technique
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Tension | Circuit principal 690 V |
| Fréquence assignée (f) | Circuit principal 50 / 60 Hz |
| Courant thermique conventionnel à l’air libre (Ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 160 A |
| Courant assignée d’emploi AC-1 (Ie) | (690 V) 40 °C 160 A, (690 V) 60 °C 145 A, (690 V) 70 °C 130 A |
| Courant assignée d’emploi AC-3 (Ie) | (415 V) 55 °C 116 A, (440 V) 55 °C 116 A, (500 V) 55 °C 110 A, (690 V) 55 °C 65 A, (380 / 400 V) 55 °C 116 A, (220 / 230 / 240 V) 55 °C 116 |
| Courant assignée d’emploi AC-3e (Ie) | (415 V) 60 °C 116 A, (440 V) 60 °C 116 A, (500 V) 60 °C 110 A, (690 V) 60 °C 65 A, (380 / 400 V) 60 °C 116 A, (220 / 230 / 240 V) 60 °C 116 A |
| Puissance assignée d’emploi AC-3 (Pe) | (415 V) 55 kW, (440 V) 75 kW, (500 V) 75 kW, (690 V) 55 kW, (380 / 400 V) 55 kW, (220 / 230 / 240 V) 30 kW |
| Puissance assignée d’emploi AC-3e (Pe) | (415 V) 55 kW, (440 V) 75 kW, (500 V) 75 kW, (690 V) 55 kW, (380 / 400 V) 55 kW, (220 / 230 / 240 V) 30 kW |
| Pouvoir assigné de coupure AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Pouvoir assigné de fermeture AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Dispositif de protection contre les courts-circuits | gG Type Fuses 250 A |
| Courant assigné de courte durée admissible (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 928 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 379 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1160 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 536 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1000 A |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour |
| Courant assignée d’emploi DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 40 °C 145 A |
| Courant assignée d’emploi DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 40 °C 145 A |
| Courant assignée d’emploi DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 40 °C 145 A |
| Tension assignée d’isolement (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 8 kV |
| Durabilite mecanique | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Plage d'utilisation de la bobine selon | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V, 60 Hz 48 ... 130 V, DC Operation 48 ... 130 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 4 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 4 V·A, Holding at Max. Rated Control Circuit Voltage DC 2.5 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 180 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 150 W |
| Durée de fonctionnement nominale | Entre la mise hors tension de la bobine et l'ouverture du contact NO (normally open) 37 ... 47 ms, Entre la mise sous tension de la bobine et la fermeture du contact NO 25 ... 55 ms |
| Connecting Capacity Main Circuit | Flexible 1 x 10 ... 70 mm², Rigid Cu-Cable 1 x 10 ... 95 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 1 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm² |
| Indice de protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Type de borne | Double Clamp |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V |
| General Use Rating UL/CSA | (600 V AC) 160 A |
| Puissance nominale UL/CSA | (200 V AC) Three Phase 30 hp, (208 V AC) Three Phase 30 hp, (220 ... 240 V AC) Three Phase 40 hp, (440 ... 480 V AC) Three Phase 75 hp, (550 ... 600 V AC) Three Phase 100 hp |
Environnement
| Température de l’air ambiant | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... +70 °C |
| Altitude de fonctionnement maximale autorisée | Without Derating 3000 m |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Circular Value
| Principes du Design Circulaire - Taux de Recyclabilité | Concu pour utiliser des ressources recyclables et réutilisables - Norme EN45555 - 87.8 % |
| ABB EcoSolutions | Oui |
| Instructions relatives à la fin de vie | 1SFC100112M0001 |
| Déchets destinés à l'enfouissement en décharge - Destination | Déchet non-dangereux mis en décharge, lorsqu’il n’existe aucune autre alternative à moins de 100km d’un bâtiment - Atteint |
| Amélioration de l'efficacité des ressources pour les clients | Efficacité du produit - Le produit nécessite moins d'énergie pour fonctionner par rapport à un produit similaire sur le marché. - Atteint |
Eco Transparency
| Environmental Product Declaration - EPD | 1SFC100092D0201 |
Pourquoi Proax pour ABB AF116-30-22-12?
Proax est un distributeur autorisé de ABB AF116-30-22-12 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Autres noms | AF116302212 |
| Taille de l'emballage | 1 |
