CEP-FS30CC3
Distributeur OfficielBy Mersen

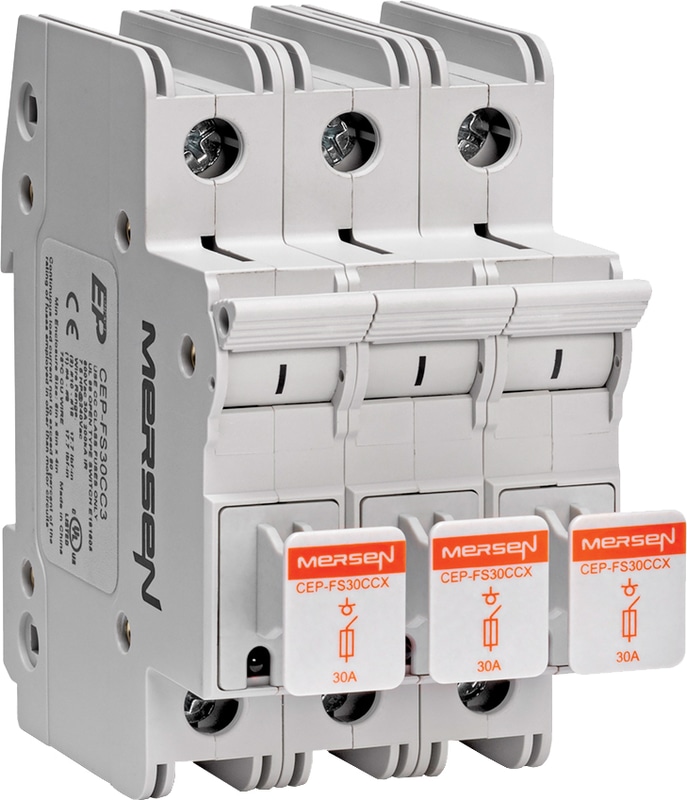

Compact Fused Switch 30A Class CC
Mersen’s Compact Fused Disconnect incorporates the switch functionality with the high protection level of a fuse. The switch accepts UL class CC fuses up to 30A. In addition to this, the Compact Fused Disconnect is UL 98 listed and suitable for use as main/feeder device and, in conjunction with CC fuses, is rated for branch circuit protection. It has a smaller footprint compared to a traditional Class CC disconnect with a max interrupting rating of 200kA. The compact form factor and ease of installation makes it a great choice for panel builders. The easy lockout/tagout feature and IP20 rating ensures additional safety along with the built in switch capability.
Features
- 30A Fused disconnect
- UL Listed
- Smaller footprint compared to a traditional Class CC disconnect
- Accepts Class CC 30A fuses
- 35mm DIN rail mounted
- Built-in lockout/tagout feature
- 200kA SCCR rating
- 75°C CU Wire
Applications
- For use as main/feeder device and in conjunction with CC fuses
- Is rated for branch circuit protection
Pourquoi Proax pour Mersen CEP-FS30CC3?
Proax est le distributeur autorisé de Mersen CEP-FS30CC3. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
| Autres noms | CEPFS30CC3 |
| Taille de l'emballage | 4 |
