Distributeur OfficielBy ABB
SKU
Weight
0.517 kg

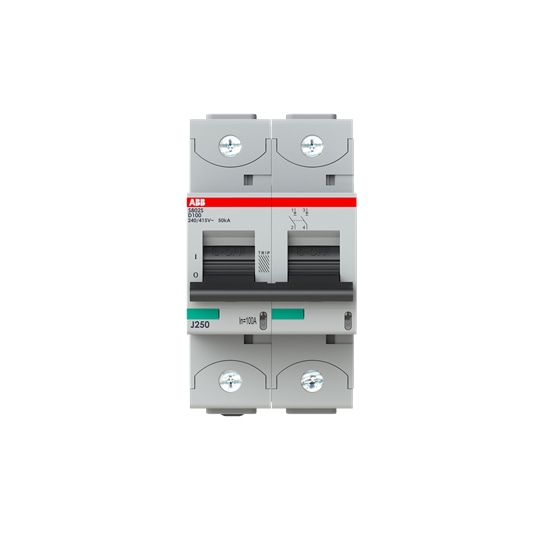

The S802S-D100 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 100 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-D100 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-D100 more comfortable. Due to the fast arc extinction of S802S-D100 your application will be secured.
Spécifications techniques
Technique
| Normes et standards | IEC/EN 60947-2, IEC/EN 60898-1, UL 1077 |
| Tripping Characteristic | D |
| Type of Residual Current | standard version |
| Tension nominale (Ur) | acc. to IEC 60947-2 690 V AC, acc. to IEC 60947-2 250 V DC, acc. to IEC 60898-1 400 V AC |
| Tension | acc. to IEC 60947-2 690 V AC, acc. to IEC 60947-2 250 V DC, acc. to IEC 60898-1 400 V AC |
| Tension assignée d’isolement (Ui) | acc. to IEC/EN 60664-1 690 V |
| Tension assignée de tenue aux chocs (Uimp) | 8 kV |
| Type de tension | AC/DC |
| Courant nominal (IN) | 100 A |
| Courant nominal de fonctionnement (Ie) | 100 A |
| Pouvoir assigné de coupure ultime en court-circuit (Icu) | (240 / 415 V AC) 50 kA, (254 / 440 V AC) 30 kA, (400 / 690 V AC) 4.5 kA, (125 V DC) 30 kA, (230 V) 50 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 50 kA, (400 V) 50 kA |
| Pourvoir assigné de coupure de service en court-circuit (Ics) | (240 / 415 V AC) 40 kA, (254 / 440 V AC) 15 kA, (400 / 690 V AC) 4 kA, (125 V DC) 30 kA |
| Fréquence (f) | 50 ... 60 Hz |
| Fréquence assignée (f) | 50...60 Hz |
| Power Loss | 18.8 W, at Rated Operating Conditions per Pole 9.4 W |
| Contact Position Indication | ON / OFF / TRIP |
| Classe de limitation d'énergie | 3 |
| Electrical Endurance | 6000 cycle |
| Mechanical Endurance | 6000 cycle |
| Nombre de pôles | 2 |
| Number of Protected Poles | 2 |
| Catégorie de surtension | IV |
| Couple de serrage | 3.5 N·m, 31 in·lb |
| Type de libération | D |
| Actuator Marking | I / O |
| Qualité du matériau | Insulation group I, RAL 7035 |
| Montage sur rail DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Type d'encastrement | tous |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Oui |
| Remarques | Connection from top and bottom, Connecting with CU only, IP40 in enclosure with cover, Cage terminal with captive screw |
| Connecting Capacity | Flexible 0...50 mm², Rigid 0...70 mm² |
| Type de borne | Bornes à vis |
Environnement
| Température extérieure | -25...60 °C |
| Température de l’air ambiant | Operation -25...60 °C |
| Reference Ambient Air Temperature | acc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C |
| Indice de protection | IP20 |
| Degré de pollution | 3 |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 2 - 13.2 Hz / 1mm, 13.2 - 100Hz / 0.7g, with load 100% x Ie |
| Statut RoHS | Following EU Directive 2011/65/EU |
Technique UL/CSA
| Interrupting Rating acc. to UL1077 | (240 V AC) 30 kA, (480Y / 277 V AC) 14 kA, (600Y / 347 V AC) 6 kA |
Dimensions
| Width in Number of Modular Spacings | 3 |
| Produit Largeur Net | 54 mm |
| Produit Hauteur Net | 95 mm |
| Produit Longueur Net | 82,5 mm |
| Poids net | 490 g |
| Taille | 2 modules |
| Profondeur d'encastrement (t2) | 82,5 mm |
