CB1-602G
Distributeur OfficielBy ABB
SKU
ABBCB1602G
MPN
1SFA619600R6022
Weight
0.021 kg

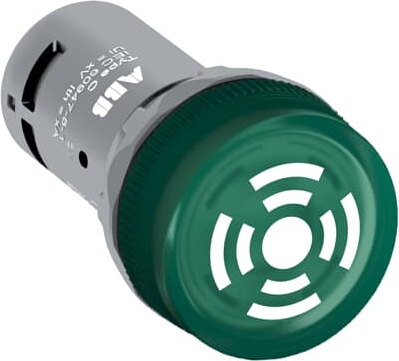

The CB1-602G Buzzer is: Compact - Buzzer - Continuous sound with continuous light - Green - Illuminated - 110 ... 130 V
This Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Spécifications techniques
Dimensions
| Produit Largeur Net | 0.03 m |
| Produit Hauteur Net | 0.03 m |
| Produit Longueur Net | 0.055 m |
| Poids net | 0,021 kg |
Technique
| Température de l’air ambiant | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
| Couleur | Vert |
| Voyant | Illuminé |
| Fonction | Continuous sound with continuous light |
| Indice de protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| Classe de protection (NEMA) | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Degré de pollution | 3 |
| Fréquence assignée (f) | 50 / 60 Hz |
| Tension | Supply Circuit 110 ... 130 V DC |
| Niveau sonore dB (A) | 80 dB |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Type de raccordement | Screw Clamp |
| Type de borne | Bornes à vis |
| Couple de serrage | 0.9 N·m |
| Wire Stripping Length | 8 mm |
Technique UL/CSA
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
Environnement
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Date RoHS | 635 4 |
| Informations RoHS | 2CMT2015-005451 |
| DEEE B2C / B2B | Business To Business |
