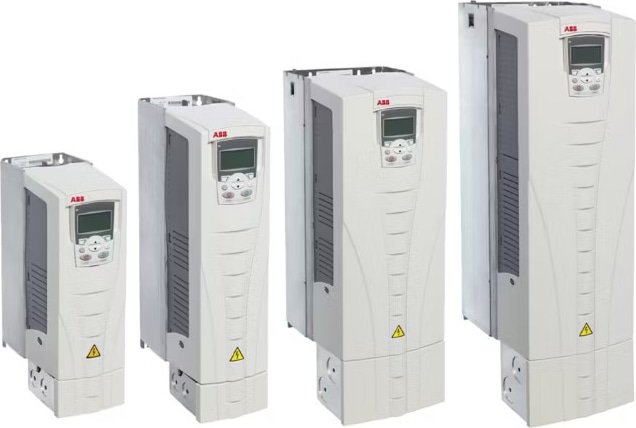

Les variateurs industriels d&#39;ABB assurent un contrôle précis et une efficacité énergétique des moteurs, améliorant ainsi les performances de diverses applications industrielles. Ces variateurs sont idéaux pour optimiser la vitesse du moteur, le couple et l&#39;efficacité opérationnelle globale, ce qui en fait des composants essentiels au maintien de la productivité et à la réduction des coûts énergétiques.

Achetez { name } chez Proax, distributeur d'automatisation top au Canada. Ramassage facile, expédition rapide.

Magasinez { name } en ligne

<ul>
<li>Vous avez peut-être tapé le mauvais terme de recherche, par exemple un nom de produit mal orthographié ou des caractères/symboles spéciaux.</li>
<li>Il se peut que nous n&#39;ayons pas le produit que vous recherchez</li>
</ul>
Essayez d&#39;affiner votre recherche en n&#39;utilisant pas de caractères spéciaux.
Ce n&#39;est pas le cas ? N&#39;hésitez pas à nous contacter et nous vous aiderons le plus rapidement possible.

The AF09-30-10-13 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

AF09-30-10-13

AF09-30-10-13 100-250V50/60HZ-DC Contactor

OHB65J6, pistol handle for base and DIN-rail mounted switches. Suitable for shaft diameter 6 mm. Color black, handle length 65 mm. IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.

OHB65J6

DBL125 Screw Clamp Power Distribution Blocks

1SNL312510R0000

DBL125 Power Distribution Block, 115A, 1Pole, IN: 1 x (#8-2) + 1 x (#10-6):  OUT 6 x (#14-6), w/Cover, Din Rail Mount or Surface Mount, w/dovetail for multipole assembly

MCB-10

The AF09-30-10-11 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

AF09-30-10-11

AF09-30-10-11 24-60V50/60HZ 20-60VDC Contactor

The AF26-30-00-13 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

AF26-30-00-13

AF26-30-00-13 100-250V50/60HZ-DC Contactor

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva General Code, the pair forms a low level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included.

Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.

Eden is UL approved for use in US and Canada.

Eva General code

SU201M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 1P UL489

SU201M-C2

SU201M-C2 Miniature Circuit Breaker - 1P - C - 2 A

Sentry SSR10 Safety relay with relay outputs 3NO+1NC, +24 VDC supply voltage and screw terminals.
For monitoring of safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs.
Manual or automatic reset selectable by switch on front.

Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.

Sentry SSR10

SU201M-C15 Miniature Circuit Breaker C-Char., 10kA, 15A, 1P UL489

SU201M-C15

SU201M-C15 Miniature Circuit Breaker - 1P - C - 15 A

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

Adam safety sensor with DYNlink signal and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.

Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.

Eden is UL approved for use in US and Canada.

Adam DYN-Info M12-5

MCB-01

SU201M-C10 Miniature Circuit Breaker C-Char., 10kA, 10A, 1P UL489

SU201M-C10

SU201M-C10 Miniature Circuit Breaker - 1P - C - 10 A

SU201M-C5 Miniature Circuit Breaker C-Char., 10kA, 5A, 1P UL489

SU201M-C5

SU201M-C5 Miniature Circuit Breaker - 1P - C - 5 A

MCBH-00

Auxiliary contacts HKF1 with screw terminals change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts.

HKF1-11

DBL175 Screw Clamp Power Distribution Blocks

1SNL317510R0000

DBL175 Power Distribution Block, 175A, 1Pole, IN: 2x(#8-1/0) OUT: 10x(#14-6), w/Cover, Din Rail Mount or Surface Mount, w/dovetail for multipole assembly

AF16-30-10-13

The AF16-30-10-13 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

The MS132-20 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 20.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.

MS132-20

MS132-20 Manual Motor Starter 16 ... 20 A

Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager.

Safety PLC with Pluto safety bus. Totally 46 I/O: 24 failsafe inputs + 16 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs.

Pluto B46 v2

Pluto B46 v2 Programmable safety controller

The MPET4-10R Emergency stop is: Twist release - Momentary - Mushroom 40 mm - Red - Non-illuminated - No contact block
This Emergency stop is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.

MPET4-10R

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,30 A,Handle and shaft included,

OS30FAJ12P

SU202M-C15 Miniature Circuit Breaker C-Char., 10kA, 15A, 2P UL489

SU202M-C15

SU202M-C15 Miniature Circuit Breaker - 2P - C - 15 A

Sentry BSR23 Safety expansion relay with relay outputs 4NO+1NC, +24 VDC supply voltage and screw terminals.
Used as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs.

Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.

ABB Entraînements industriels

Series

ACS580 Entraînements simples

Modules d'entraînement ACS800

ACS550 Entraînements simples

ACS800 Entraînements simples

Modules d'entraînement ACS880

ACS880 Entraînement de machines

ACS880 à entraînement unique
