2TLA020054R1200

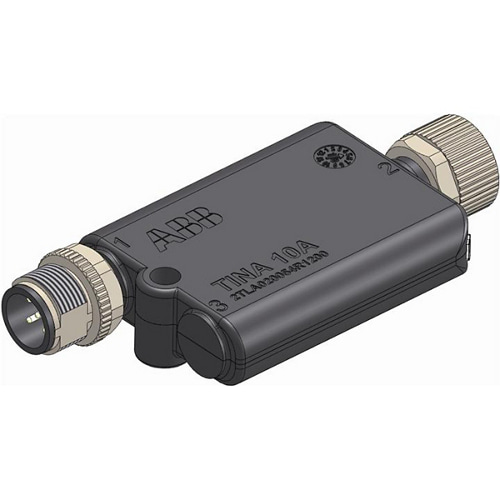

TIna 10A v2 adapts the OSSD outputs of ABB optical safety devices to the DYNlink solution. Tina 10A v2 has one M12-5 male connector towards the DYNlink loop and one M12-8 female connector towards the OSSD device.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 2B is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 2B is placed inside the safety device enclosure.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 10B Unité d'adaptation où les sorties OSSD (PNP) de Focus II peuvent être transformées en circuits dynamiques.

TIna 10B v2 adapts the OSSD outputs of ABB optical safety devices to the DYNlink solution with possibility to connect a local reset button. Tina 10B has one M12-5 male connector towards the DYNlink loop, one M12-8 female connector towards the OSSD device and one M12-5 female connector for the local reset button.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 3Aps is used for adaptation of devices with two positively driven force-guided contacts like E-stop buttons and key switches, to the DYNlink solution, with extra conductor for the supply of the safety device. Tina 3A is mounted directly on the device enclosure to a M20 cable entry and has a M12-5 male connector for connection to the DYNlink loop. Connection to +24VDC and 0V on the device side.

20-054-16, Tina 10C

TIna 10C v2 adapts the OSSD outputs of ABB optical safety devices to the DYNlink solution with possibility to power the transmitter. Tina 10C has one M12-5 male connector towards the DYNlink loop, one M12-8 female connector towards the OSSD device and one M12-5 female connector for the supply of the transmitter (0V and +24VDC).The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 11A is a connection block for serie connection of two DYNlink devices with M12-5 connectors. Two M12-5 female connectors for the devices and one M12-5 male connector towards the DYNlink loop.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 3A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 3A is mounted directly on the device enclosure to a M20 cable entry and has a M12-5 male connector for connection to the DYNlink loop.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 2A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 2A is mounted directly on the device enclosure to a M20 cable entry.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 4A is a connection block for series connection of up to four DYNlink devices. Four M12-5 female connectors for the sensors are available on the device. The information signal of each device can be wired separately. The cable used for the connection to the Tina 4A should have a diameter 7 - 12 mm. Unused M12-connectors on Tina 4A must be equipped with Tina 1A blind plugs.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

TINA 5A VER G

Tina 1A blind plug is connected to the unused M12 connectors of the connection blocks Tina 4A or Tina 8A. M12-5 male connector.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 8A is a connection block for series connection of up to eight DYNlink devices. Eight M12-5 female connectors for the sensors are available on the device. The information signal of each device can be wired separately. The cable used for the connection to the Tina 8A should have a diameter 7 - 12 mm. Unused M12-connectors on Tina 8A must be equipped with Tina 1A blind plugs.The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs.Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.

Tina 6A Unité d'adaptation pour les circuits dynamiques. Tina 6A avec connecteurs M12 mâle et femelle pour la connexion du tapis de sécurité, de la bande et du pare-chocs.

Tina 7A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 7A is mounted on a DIN rail in the electrical cabinets and the connected safety device(s) must be mounted on the same cabinet, e.g. an emergency-stop button mounted on the cabinet. Electrical connection is made via detachable terminal blocks.

M12-C02 is a straight M12-5 male connector with cable screw connection. The range of the cable diameter is 2.5–6.5 mm.

M12-C01 is a straight M12-5 female connector with cable screw connection. The range of the cable diameter is 2.5–6.5 mm.

M12-C03 is a straight M12-8 female connector with cable screw connection. The range of the cable diameter is 2.5–6.5 mm.

M12-3E is a M12 Y-connector for the connection of 2 DYNlink devices or one DYNlink device and one light button to Pluto safety PLC with only one cable. Connector #2 is a M12-5 female connector for connection of the first circuit. Connector #3 ia a M12-5 female connector for connection of the second circuit. Connector #1 is a M12-5 male connector for connection to IQs on the Pluto safety PLC.
