SKU

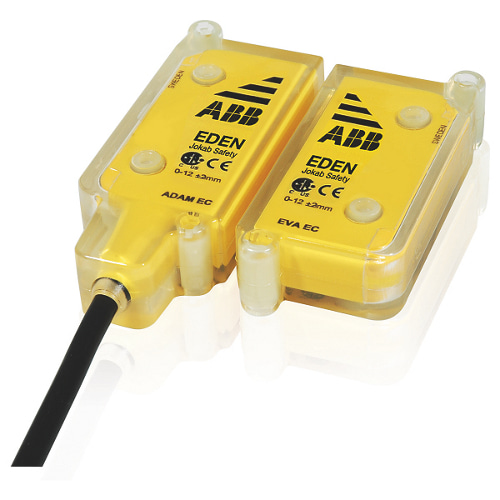

Capteur de sécurité Adam, encapsulé dans du polyuréthane pour les environnements difficiles, avec 10 m de câble (5 × 0,34 mm2 + écran) et M12, IP69K, jaune.
Documents
Spécifications techniques
| Application | A utiliser avec les capteurs Eva dans le système de capteurs Eden |
| Couleur | Jaune et noir |
| Profondeur | 0.21 m |
| Hauteur | 0.25 m |
| Alimentation électrique | 24 V DC + 15%-25% |
| Taille | 0,025 x 0,25 x 0,21 m |
| Dossier spécial | Outre le signal de sécurité émis par Adam, il existe également un signal d'état non sécurisé (sur la broche 5) qui indique le contact ou le non-contact entre Adam et Eva. |
| Normes | CE |
| Largeur | 0.025 m |
Pourquoi Proax pour ABB 2TLA020051R0600?
Proax est un distributeur autorisé de ABB 2TLA020051R0600 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Taille de l'emballage | 1 |
Recommandé
Capteur de sécurité Adam, encapsulé dans du polyuréthane pour les environnements difficiles, avec 0,5 m de câble (5 × 0,34 mm2 + écran) et M12, IP69K, jaune.
*** obsolete see 2TLA020051R5100*** Adam safety sensor unit with 10 m of cable (5 Ã 0.34 mm2 + screen) and M12, IP67, yellow, 4pcs of DA1 protection plate and 4pcs of DA2 spacer rings are included.
Capteur de sécurité Adam avec 3 m de câble (5 × 0,34 mm2 + écran) et M12, IP67, jaune, 4pcs de la plaque de protection DA1 et 4pcs des anneaux d'écartement DA2 sont inclus.- Capteur de sécurité Adam avec 10 m de câble (5 × 0,34 mm2 + écran) et M12, IP67, gris, 4pcs de la plaque de protection DA1 et 4pcs des anneaux d'écartement DA2 sont inclus.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with OSSD signals and reset with indication. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-8 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Capteur de sécurité Adam, encapsulé dans du polyuréthane pour les environnements difficiles, avec 0,5 m de câble (5 × 0,34 mm2 + écran) et M12, IP69K, gris.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with DYNlink signal and reset with indication. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with OSSD signals and reset with indication. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-8 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with DYNlink signal and StatusBus. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with DYNlink signal and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.Eden is UL approved for use in US and Canada.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.Eden consists of two parts: Adam and Eva. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360° mounting possibility make it easy to use in most applications. Adam safety sensor unit with AS-i node. M12-4 male connector, IP69K, yellow. 4pcs of DA 1 distance plates and 4pcs of DA 2B distance rings are included.
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.Eden consists of two parts: Adam and Eva. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360° mounting possibility make it easy to use in most applications. Eva actuator for use with Adam AS-i sensors in the Eden sensor system, IP69K, yellow, 4pcs of DA2 spacer rings are included.
Vital 1 Safety controller with relay outputs 2NO, +24 VDC supply voltage and detachable screw terminals.For monitoring of safety devices, such as emergency stops, using DYNlink.Vital 1 is a configurable safety controller that does not require programming. It uses the DYNlink system, which allows up to 30 safety devices to be connected in series to the same circuit, while achieving PL e / SIL 3. The DYNlink circuit is a unique solution that uses one single channel to achieve upt to Cat.4/PL e. Using DYNlink reduces the installation and engineering time thanks to simple installation with serial connection using M12 connectors. Vital 1 can only be used with DYNlink safety devices, such as Eden DYN and devices with a Tina adapter.
