1SVR427045R0400
Weight
0.449 kg

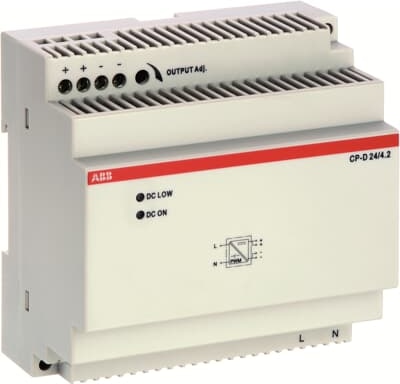

The CP-D 24/4.2 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 100 W, rated output current is 4.2 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.
Documents
Spécifications techniques
Dimensions
| Produit Largeur Net | 89,9 mm |
| Produit Hauteur Net | 91 mm |
| Produit Longueur Net | 57,5 mm |
| Poids net | 0,386 kg |
Technique
| Fonction | Alimentation à découpage |
| Nombre de phases | 1 |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| Tension du secteur (Uin) | 90 ... 264 V AC, 120 ... 375 V DC |
| Fréquence assignée (f) | 50 Hz, 60 Hz |
| Rated Frequency Limits | 47 ... 63 Hz |
| Characteristic of Output | U/I characteristic curve |
| Rated Output Power | 100 W |
| Puissance de sortie | 100 W |
| Rated Output Voltage | 24 V DC |
| Tension de sortie (Uout) | 24 V DC |
| Rated Output Current | 4.2 A |
| Courant de sortie | 4.2 A |
| Output Current Maximum (Iout) | 4.2 A |
| Tension assignée de tenue aux chocs (Uimp) | Input Circuit / Output Circuit 3 kV |
| Tension assignée d’isolement (Ui) | Input Circuit / Output Circuit 300 V, Input Circuit / PE 300 V, Output Circuit / PE 50 V |
| Indice de protection | Housing IP20, Terminals IP20 |
| Degré de pollution | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 ... 2.5 mm², Rigid 0.2 ... 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 .... 2.5 mm², Rigid 0.2 ... 2.5 mm² |
| Couple de serrage | Input Circuit 0.7 N·m, Output Circuit 0.7 N·m |
| Wire Stripping Length | Input Circuit 7 mm, Output Circuit 7 mm |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm, Electrical Conductive Board, Vertical 25 mm, Other Device Same Type, Horizontal 25 mm, Other Device Same Type, Vertical 25 mm |
| Type d'encastrement | 1 |
| Montage sur rail DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Normes et standards | CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL 60950 |
Environnement
| Température de l’air ambiant | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
| Altitude de fonctionnement maximale autorisée | 4850 m |
| Statut RoHS | Following EU Directive 2011/65/EU |
Technique UL/CSA
| Connecting Capacity Input Circuit UL/CSA | Rigid 24-12 AWG |
| Connecting Capacity Output Circuit UL/CSA | Rigid 24-12 AWG |
| Tightening Torque UL/CSA | Input Circuit 6 in·lb, Output Circuit 6 in·lb |
Electromagnetic Compatibility
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV, Level 4 Contact Discharge 4 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 | Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 3 Line-to-Line 2 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Electromagnetic Compatibility (EMC) | Emission - Class B, Immunity - Class B |
