DB96
Distributeur OfficielBy ABB
SKU
ABBDB96
MPN
1SAZ901901R1001
Weight
0.19 kg

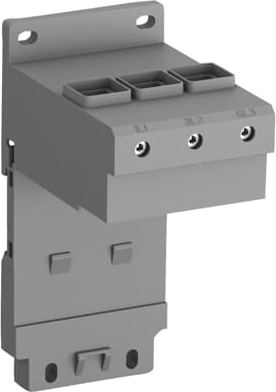

The DB96 single mounting kit allows the installation of TF96 thermal overload relays or EF96 electronic overload relays without a contactor on a DIN rail or mounting plate.
Spécifications techniques
Dimensions
| Produit Largeur Net | 70 mm |
| Produit Hauteur Net | 157 mm |
| Produit Longueur Net | 102 mm |
| Poids net | 0,19 kg |
Technique
| Tension | Circuit principal 1000 V AC |
| Fréquence assignée (f) | Circuit principal 60 Hz, Circuit principal 50 Hz |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 8 kV |
| Tension assignée d’isolement (Ui) | 1000 V |
| Nombre de pôles | 3 |
| Indice de protection | IP20 |
| Degré de pollution | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 6 ... 50 mm², Flexible with Ferrule 2x 6 ... 35 mm², Flexible with Insulated Ferrule 1x 6 ... 50 mm², Flexible with Insulated Ferrule 2x 6 ... 16 mm², Flexible 1x 6 ... 70 mm², Flexible 2x 6 ... 35 mm², Rigid 1x 6 ... 70 mm², Rigid 2x 6 ... 35 mm² |
| Couple de serrage | Main Circuit 6 N·m |
| Wire Stripping Length | Main Circuit 22 mm |
| Recommended Screw Driver | M8, Hexagon 4 |
| Type d'encastrement | 1 ... 6 |
| Adapté pour | TF96, EF96 |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 8-1 AWG, Flexible 2x 8-3 AWG, Stranded 1x 8-1 AWG, Stranded 2x 8-2 AWG |
| Tightening Torque UL/CSA | Main Circuit 55 in·lb |
Environnement
| Résistance aux chocs selon CEI 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g / 3 ... 150 Hz |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
