DB65
Distributeur OfficielBy ABB
SKU
ABBDB65
MPN
1SAZ801901R1001
Weight
0.132 kg

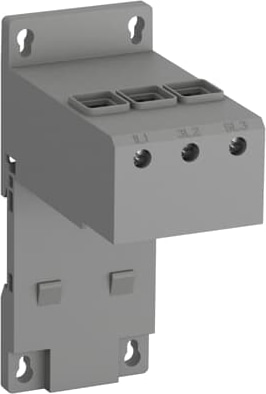

The DB65 single mounting kit allows the installation of TF65 thermal overload relays without a contactor on a DIN rail or mounting plate.
Spécifications techniques
Dimensions
| Produit Largeur Net | 55 mm |
| Produit Hauteur Net | 95 mm |
| Produit Longueur Net | 138 mm |
| Poids net | 0,132 kg |
Technique
| Tension | Circuit principal 690 V AC |
| Courant nominal de fonctionnement (Ie) | 67 A |
| Courant assignée d’emploi AC-3 (Ie) | 67 A |
| Fréquence assignée (f) | Circuit principal 60 Hz, Circuit principal 50 Hz |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 8 kV |
| Tension assignée d’isolement (Ui) | 390 V |
| Nombre de pôles | 3 |
| Indice de protection | IP20 |
| Degré de pollution | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 35 mm², Flexible with Ferrule 2x 2.5 ... 10 mm², Flexible with Insulated Ferrule 1x 2.5 ... 35 mm², Flexible with Insulated Ferrule 1x 2.5 ... 10 mm², Flexible 1x 2.5 ... 35 mm², Flexible 2x 2.5 ... 16 mm², Rigid 1x 2.5 ... 35 mm², Rigid 2x 2.5 ... 16 mm² |
| Couple de serrage | Main Circuit 4.0 ... 4.5 N·m |
| Wire Stripping Length | Main Circuit 17 mm |
| Recommended Screw Driver | Pozidriv 2, M6 |
| Type d'encastrement | 1 ... 6 |
| Adapté pour | TF65 |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 12-2 AWG, Flexible 2x 12-6 AWG, Stranded 1x 12-2 AWG, Stranded 2x 12-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 35 ... 40 in·lb |
Environnement
| Résistance aux chocs selon CEI 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g / 3 ... 150 Hz |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Pourquoi Proax pour ABB DB65?
Proax est un distributeur autorisé de ABB DB65 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Taille de l'emballage | 1 |
