Spécifications techniques
Dimensions
| Produit Longueur Net | 28 mm |
| Produit Hauteur Net | 44 mm |
| Produit Largeur Net | 81 mm |
| Poids net | 0,25 kg |
Technique

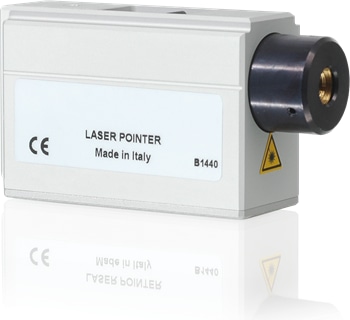

| Adapté pour | Orion1 Base, Orion1 Extended, Orion2 Base, Orion2 Extended, Orion3 Base, Orion3 Extended |
Pourquoi Proax pour ABB Orion Laser?
Proax est un distributeur autorisé de ABB Orion Laser et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Autres noms | OrionLaser |
| Taille de l'emballage | 1 |
Recommandé
JSM Orion02 - 4 standard brackets for Orion3. For 500, 800 and 900 mm units, 2 brackets should be used per unit (active or passive unit). For 1200 mm units, 3 brackets should be used per unit (active or passive unit). These are spare parts since the necessary number of bracket are delivered with the light-guard.
JSM Orion01 - 4 standard brackets for Orion1 & Orion2. For all lengths, 2 brackets should be used per unit (transmitter or receiver unit). These are spare parts since the necessary number of bracket are delivered with the light-guard.
JSM Orion03 - 4 rotation brackets for Orion1 Base. For all lengths, 2 brackets should be used per unit (transmitter or receiver unit).
JSM Orion04 - 4 rotation brackets for Orion2. For all lengths, 2 brackets should be used per unit (transmitter or receiver unit).
JSM Orion05 - 4 rotation brackets for Orion3. For 500, 800 and 900 mm units, 2 brackets should be used per unit (active or passive unit). For 1200 mm units, 3 brackets should be used per unit.
JSM Orion06 - Kit for mounting of Orion1 & Orion2 in Stand (4 brackets) - For light guards shorter than 1200 mm- JSM Orion07 - Kit for mounting of Orion1 & Orion2 in Stand (6 brackets) - For light guards with a height from 1200 mm
JSM Orion08 - Kit for mounting of Orion3 in Stand (4 brackets) - For light guards shorter than 1200 mm- JSM Orion09 - Kit for mounting Orion3 in Stand (6 brackets) - For light guards with a height from 1200 mm
Orion1 Mirror 060 - Deviating mirror exclusive stand - for Orion1 - Length = 600 mm - The lenght of the mirror must be at at least 100 mm longer than the protected height of the light curtain
Orion1 Mirror 090 - Deviating mirror exclusive stand - for Orion1 - Length = 900 mm - The lenght of the mirror must be at at least 100 mm longer than the protected height of the light curtain
Orion1 Mirror 120 - Deviating mirror exclusive stand - for Orion1 - Length = 1200 mm - The lenght of the mirror must be at at least 100 mm longer than the protected height of the light curtain
Orion1 Mirror 165 - Deviating mirror exclusive stand - for Orion1 - Length = 1650 mm - The lenght of the mirror must be at at least 100 mm longer than the protected height of the light curtain
Orion1 Mirror 190 - Deviating mirror exclusive stand - for Orion1 - Length = 1900 mm - The lenght of the mirror must be at at least 100 mm longer than the protected height of the light curtain
Orion Stand Plate - Adjustment of Stand - Used together with an Orion stand (different heights) or Orion Mirror K (different heights) to simplify horizontal leveling.
