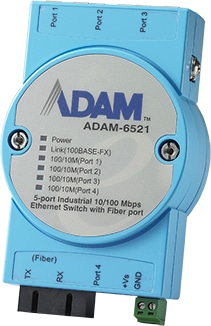

ADAM-6521-BE

The ADAM-6521 is an industrial-grade Ethernet hub for infrastructure networking solution in industrial Automation environment. It allows users to cost-effectively expand their industrial network with ease. The ADAM-6521 consists of one fiber optic and four RJ-45 ports. With fiber optic, you can prevent noise interference from the system and transmission distance up to 2 km. The design is focused on industrial-grade reliability and stability. Thus, the ADAM-6521 is especially suited for industrial environments with Ethernet networking needs, e.g. semi-conductor factories, inventory control environments, assembly lines, production and more.

Features

• Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
• Supports full/half duplex flow control
• Supports Integrated Loop-up engine
• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Supports +10 ~ 30 VDC voltage power input
• Provides surge (EFT) protection 3,000 VDC for power line
• Supports 4,000 VDC Ethernet ESD protection
• Supports operating temperatures from -10 ~ 65° C
