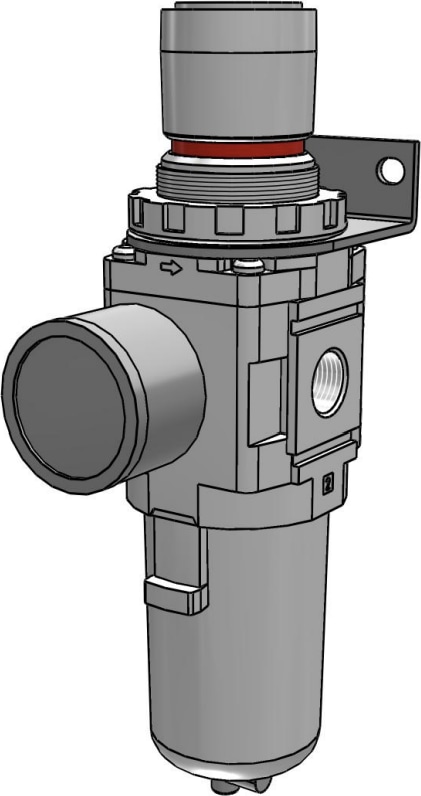

AW30-N03BG-Z-D

SMC AW30-N03BG-Z-D is a modular air filter regulator that combines particle filtration and precise pressure regulation in a single compact unit, helping reduce installation space and piping requirements in compressed air systems. This model features a 3/8 in. NPT port, Body Size 30, an integrated mounting bracket, and a round pressure gauge with limit indicator for accurate pressure monitoring. It includes a manual drain cock (without auto drain), a relieving regulator, a polycarbonate bowl with a transparent 360° bowl guard, and a dual-scale MPa/psi pressure gauge with product labeling in psi/°F. The updated D Series offers improved visibility, easier handling during maintenance, and compatibility with existing AW and AR series mounting hardware.

• Combines air filtration and pressure regulation in one compact unit

• 3/8 in. NPT ports (Body Size 30)

• Integrated mounting bracket for easy installation

• Round pressure gauge with limit indicator (dual-scale MPa/psi)

• Manual drain cock (no auto drain)

• Relieving regulator design

• Polycarbonate bowl with transparent 360° protective bowl guard

• Compact modular design reduces installation space and piping

• Compatible mounting pitch with existing AW and AR series products

• Pressure setting range: 0.05 to 0.85 MPa (7 to 123 psi)

• Flow direction: Left to Right

• Product labeling in psi/°F

• Without backflow function

• Without digital pressure switch
