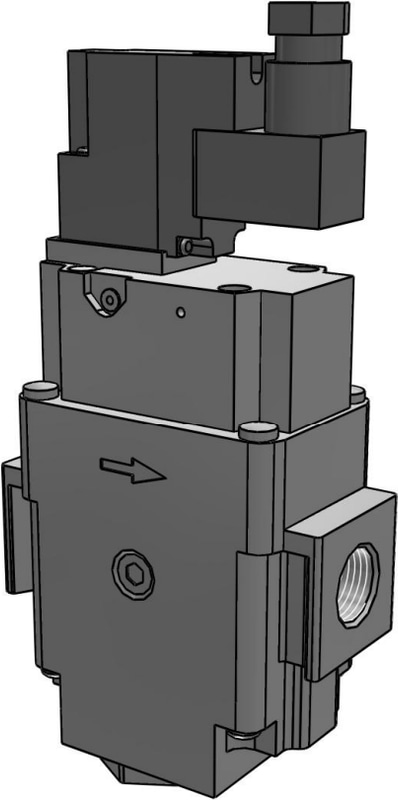

AV3000-N03-5DZ-Z-A

The SMC AV3000-N03-5DZ-Z-A is a soft start-up valve designed to gradually pressurize pneumatic systems during startup and rapidly exhaust air when the supply is shut off. This controlled pressurization helps protect equipment, reduce mechanical shock, and improve overall system safety. Featuring a compact design with integrated energy-saving functionality, the AV3000 Series delivers improved flow performance while minimizing installation space and maintenance requirements.

• Soft start-up valve for controlled system pressurization and rapid exhaust

• 3/8 in. NPT ports for pneumatic air systems

• 24 VDC solenoid coil with DIN terminal and connector (Type D)

• Built-in light and surge voltage suppressor for improved electrical protection

• Low power consumption of just 0.35 W

• Improved flow characteristics with flow rate up to 9.2 dm³/(s·bar) (up to 2.3× improvement)

• Energy-saving design with no air flow when the main valve is switched

• Enhanced low-speed pressure adjustment for smoother startup

• Non-locking push-type manual override

• Left-to-right flow direction

• Nameplate and pressure units in psi (Imperial)

• Silencer not included

• Mounting option and pressure gauge not included
