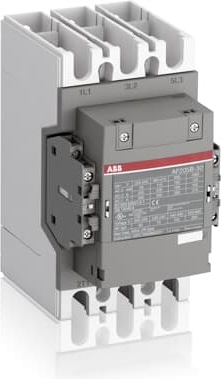

AF205B-30-22-12
Distributeur OfficielBy ABB
SKU
ABBAF205B302212
MPN
1SFL527063R1222
Weight
2.4 kg
The AF205B-30-22-12 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL and switching power circuits up to 350 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.
Spécifications techniques
Dimensions
| Produit Largeur Net | 105 mm |
| Produit Longueur Net | 152 mm |
| Produit Hauteur Net | 196 mm |
| Poids net | 2,4 kg |
Technique
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Normes et standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| Courant assignée d’emploi AC-1 (Ie) | (1000 V) 40 °C 275 A, (1000 V) 60 °C 250 A, (1000 V) 70 °C 200 A, (690 V) 40 °C 350 A, (690 V) 60 °C 300 A, (690 V) 70 °C 240 A |
| Courant assignée d’emploi AC-3 (Ie) | (415 V) 55 °C 205 A, (440 V) 55 °C 205 A, (500 V) 55 °C 165 A, (690 V) 55 °C 165 A, (1000 V) 55 °C 100 A, (380 / 400 V) 55 °C 205 A, (220 / 230 / 240 V) 55 °C 205 |
| Puissance assignée d’emploi AC-3 (Pe) | (415 V) 110 kW, (440 V) 132 kW, (500 V) 110 kW, (690 V) 160 kW, (1000 V) 132 kW, (380 / 400 V) 110 kW, (220 / 230 / 240 V) 55 kW |
| Courant assigné de courte durée admissible (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A |
