ABB EH-3434-HWS
ABBDistributeur Officiel

By ABB

SKU
MPN
7TAA266330R0137
Weight
1 kg

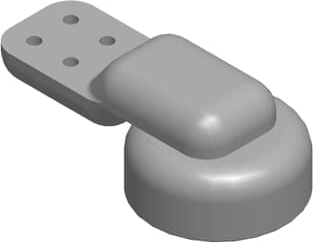

Aluminum Welded Substation Extra High Voltage Terminal at 90 Degrees for Tube to Flat with 4 holes (9/16 inch Diameter on 1-3/4 inch centers), 4 inch x 4 inch NEMA Pad, for over 1K Volts, for 5 inch Aluminum Pipe. 12-1/4 inch long overall. Includes Hardware Shield.
Spécifications techniques

Informations Supplémentaires

ApplicationTube to Flat
Marque / ÉtiquetteHomac
Insulation MaterialAucun
MatériauAluminium
Type de produitELECTRICAL CONNECTOR>1000V

Informations Supplémentaires

Type de produitWelded Substation Extra High Voltage Terminal
Taille12-1/4 inch long overall x 6-3/8 inch wide
Fonctions spéciales90 Degrees, includes Hardware Shield
Finition de surfaceBare

Pourquoi Proax pour ABB EH-3434-HWS?

Proax est un distributeur autorisé de ABB EH-3434-HWS et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!

Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!

Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires

Autres nomsEH3434HWS
Taille de l'emballage1
