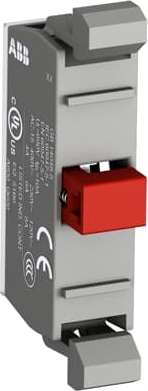

MCBL-01
Distributeur OfficielBy ABB
SKU
ABBMCBL01
MPN
1SFA611612R1001
Weight
0.01 kg
The MCBL-01 Contact Block is: - Non-illuminated - Micro switch contact block - Front mounting - silver gold plated (Ag/Au) - 0 NO - 1NC - 125 V
This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
Documents
Spécifications techniques
Dimensions
| Produit Largeur Net | 0.01 m |
| Produit Hauteur Net | 0.044 m |
| Produit Longueur Net | 0.015 m |
| Poids net | 0,01 kg |
Technique
| Température de l’air ambiant | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
| Voyant | Non éclairé |
| Fonction | Without holder |
| Type de montage | Montage frontal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Degré de pollution | 3 |
| Tension assignée d’isolement (Ui) | 125 V |
| Fréquence assignée (f) | 50 / 60 Hz |
| Tension | Maximum 125 V |
| Courant assignée d’emploi DC-13 (Ie) | (24 V) 0.3 A |
| Power Loss | Maximum 0.45 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Type de raccordement | Screw Clamp |
| Type de borne | Bornes à vis |
| Couple de serrage | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Adapté pour | MP1, MP2, MP3, MP4, MPD1, MPD2, MPD3, MPD4, MPD5, MPD11, MPD12, MPD13, MPD14, MPD15, MPD16, MPM1, MPM2, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, M3SSC1, M3SSC2, M3SSC3, M3SSC4, M3SSC5, M3SSC6, M3SSC7, M3SSC8, M2SSK1, M2SSK2, M2SSK3, M3SSK1, M3SSK2, M3SSK3, MTS1, MTS2, MTS3, MJS1, MJS2, MJS5, MJS6, MJS7, MJS8, MJS11, MJS12 |
| Adapté pour la classe de produit | Pilot Devices |
Technique UL/CSA
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
Environnement
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Date RoHS | 0635 4 |
| Informations RoHS | 2CMT2015-005452 |
| DEEE B2C / B2B | Business To Business |
