Spécifications techniques
Dimensions
| Produit Largeur Net | 60 mm |
| Produit Hauteur Net | 92 mm |
| Produit Longueur Net | 117 mm |
| Poids net | 0,155 kg |
Technique
| Tension | Circuit principal 690 V AC |
| Courant assignée d’emploi AC-3 (Ie) | 80 A |
| Fréquence assignée (f) | Circuit principal 50 Hz, Circuit principal 60 Hz |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 6 kV |
| Tension assignée d’isolement (Ui) | 690 V |
| Nombre de pôles | 3 |
| Degré de pollution | 3 |
| Adapté pour | TA42DU, TA80DU, TA75DU |
| Normes et standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V AC |
Environnement
| Température de l’air ambiant | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |

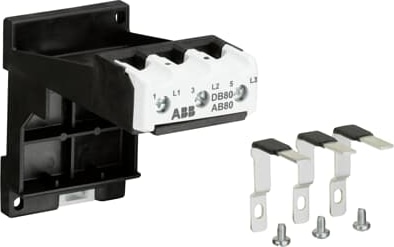

Pourquoi Proax pour ABB DB80?
Proax est un distributeur autorisé de ABB DB80 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Taille de l'emballage | 1 |
