DB42
Distributeur OfficielBy ABB
SKU
ABBDB42
MPN
1SAZ701902R0001
Weight
0.087 kg

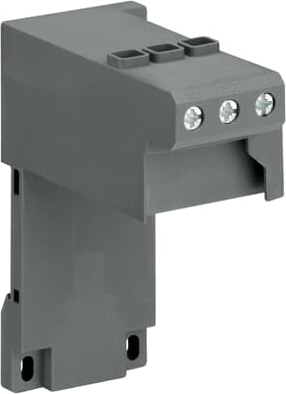

The DB42 single mounting kit allows the installation of TF42 thermal overload relays without a contactor on a DIN rail or mounting plate.
Spécifications techniques
Dimensions
| Produit Largeur Net | 50 mm |
| Produit Hauteur Net | 102 mm |
| Produit Longueur Net | 108 mm |
| Poids net | 0,087 kg |
Technique
| Tension | Circuit principal 690 V AC |
| Courant nominal de fonctionnement (Ie) | 40 A |
| Courant assignée d’emploi AC-3 (Ie) | 40 A |
| Fréquence assignée (f) | Circuit principal 50 Hz, Circuit principal 60 Hz |
| Tension assignée de tenue aux chocs (Uimp) | Circuit auxiliaire 6 kV, Circuit principal 6 kV |
| Tension assignée d’isolement (Ui) | 690 V |
| Nombre de pôles | 3 |
| Indice de protection | IP20 |
| Degré de pollution | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 0.75 ... 10 mm², Flexible with Insulated Ferrule 1x 0.75 ... 10 mm², Flexible 1x 0.75 ... 10 mm², Rigid 1x 0.75 ... 2.5 mm² |
| Couple de serrage | Main Circuit 1.5 ... 2.7 N·m |
| Wire Stripping Length | Main Circuit 12 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Type d'encastrement | 1 ... 5 |
| Adapté pour | TF42 |
| Normes et standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 18-6 AWG, Stranded 1x 18-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 13 ... 22 in·lb |
Environnement
| Résistance aux chocs selon CEI 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g / 3 ... 150 Hz |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
