DB200
Distributeur OfficielBy ABB
SKU
ABBDB200
MPN
1SAZ401110R0001
Weight
0.225 kg

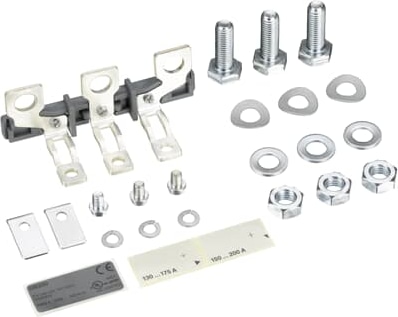

The DB200 single mounting kit allows the installation of TA110DU or TA200DU thermal overload relays without a contactor on a mounting plate.
Spécifications techniques
Dimensions
| Produit Largeur Net | 105 mm |
| Produit Hauteur Net | 43 mm |
| Produit Longueur Net | 40 mm |
| Poids net | 0,225 kg |
Technique
| Tension | Circuit principal 690 V AC |
| Fréquence assignée (f) | Circuit principal 50 Hz, Circuit principal 60 Hz |
| Tension assignée de tenue aux chocs (Uimp) | Circuit principal 6 kV |
| Tension assignée d’isolement (Ui) | 690 V |
| Nombre de pôles | 3 |
| Degré de pollution | 3 |
| Connecting Capacity Main Circuit | Hole Diameter > 10 mm², Rigid or Flexible with Cable Lug 1x 25 ... 120 mm² |
| Couple de serrage | Main Circuit 25 N·m |
| Adapté pour | TA110DU, TA200DU |
| Normes et standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 |
Technique UL/CSA
| Maximum Operating Voltage UL/CSA | Circuit principal 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 4-0000 AWG |
Environnement
| Température de l’air ambiant | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Pourquoi Proax pour ABB DB200?
Proax est un distributeur autorisé de ABB DB200 et l'un des plus grands distributeurs de ABB en Amérique du Nord. Notre équipe technique interne, qui est hautement qualifiée, est prête à répondre à vos besoins techniques!
Avez-vous une question? pour vous aider à obtenir le bon produit le plus rapidement possible pour votre projet. Nous sommes toujours là pour vous aider!
Délai de livraison court
Personnel qualifié
Chat en direct
Support technique
Inventaire local
60+ ans d'expérience
Informations complémentaires
| Taille de l'emballage | 1 |
