CP6-10B-11
Distributeur OfficielBy ABB
SKU
ABBCP610B11
MPN
1SFA619105R1076
Weight
0.031 kg

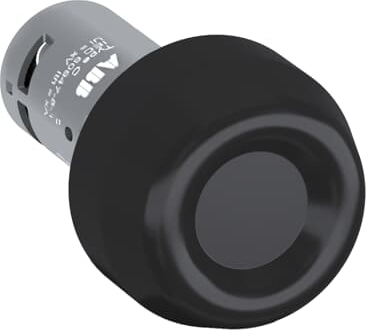

The CP6-10B-11 Heavy Duty Pushbutton is: Compact - Heavy Duty Pushbutton - Momentery - Heavy Duty - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 300 V
This Heavy Duty Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Spécifications techniques
Dimensions
| Produit Largeur Net | 0.037 m |
| Produit Hauteur Net | 0.037 m |
| Produit Longueur Net | 0.061 m |
| Poids net | 0,031 kg |
Technique
| Température de l’air ambiant | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
| Couleur | Noir |
| Actuator Type | Heavy Duty |
| Bezel Material | N/A |
| Voyant | Non éclairé |
| Fonction | Momentery |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Indice de protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| Classe de protection (NEMA) | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Degré de pollution | 3 |
| Tension assignée d’isolement (Ui) | 300 V |
| Tension assignée de tenue aux chocs (Uimp) | 6 kV |
| Fréquence assignée (f) | 50 / 60 Hz |
| Tension | Maximum 300 V |
| Courant assignée d’emploi DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Courant assignée d’emploi AC-15 (Ie) | (240 V) 1 A |
| Power Loss | Maximum 5 W |
| Durabilite mecanique | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Type de raccordement | Screw Clamp |
| Type de borne | Bornes à vis |
| Couple de serrage | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technique UL/CSA
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
Environnement
| Statut RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Date RoHS | 0635 4 |
| Informations RoHS | 2CMT2015-005451 |
| DEEE B2C / B2B | Business To Business |
