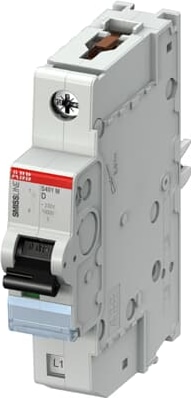

S401M-D32
Distributeur OfficielBy ABB
SKU
ABBS401MD32
MPN
2CCS571001R0321
Weight
0.11 kg
SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.
Spécifications techniques
Technique
| Normes et standards | IEC/EN 60898-1 |
| Tripping Characteristic | D |
| Tension | acc. to IEC 60898-1 230 V AC |
| Operational Voltage | Minimum 12 V AC |
| Tension assignée d’isolement (Ui) | acc. to IEC/EN 60664-1 440 V |
| Tension assignée de tenue aux chocs (Uimp) | 4 kV |
| Type de tension | AC |
| Courant nominal (IN) | 32 A |
| Courant nominal de fonctionnement (Ie) | 32 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 / 400 V AC) 10 kA |
| Fréquence (f) | 50 ... 60 Hz |
| Fréquence assignée (f) | 50 ... 60 Hz |
| Power Loss | 3.1 W |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Classe de limitation d'énergie | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 10000 cycle |
| Nombre de pôles | 1 |
| Number of Protected Poles | 1 |
| Catégorie de surtension | III |
| Couple de serrage | 2.8 N·m |
| Type de libération | D |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Type d'encastrement | tous |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Oui |
| Connecting Capacity | Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Type de borne | Bornes à vis |
Environnement
| Température extérieure | -25...55 °C |
| Température de l’air ambiant | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
| Reference Ambient Air Temperature | 30 °C |
| Indice de protection | IP20 |
| Degré de pollution | 3 |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 2…13.2 Hz/1 mm, 13.2…100Hz/0.7 g, 5 cycles, 5…150 … 5 Hz/1 g, 4 waves |
| Statut RoHS | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
Dimensions
| Width in Number of Modular Spacings | 1 |
| Produit Largeur Net | 18 mm |
| Produit Hauteur Net | 91 mm |
| Produit Longueur Net | 75 mm |
| Poids net | 110 g |
| Taille | 1 module |
| Profondeur d'encastrement (t2) | 75 mm |
