CCL5-11
Distributeur OfficielBy ABB
SKU
ABBCCL511
MPN
1SBN011421R1008
Weight
0.05 kg

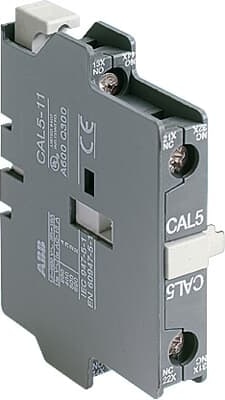

CCL5-11 is a 2-pole side mounted auxiliary contact block equipped with screw terminals and can be fitted on A9…16 contactors and N 4-pole contactor relays. CCL5-11 is available with one N.O. leading contact and one N.C. lagging contact for standard industrial environments.
Spécifications techniques
Dimensions
| Produit Largeur Net | 12 mm |
| Produit Longueur Net | 60 mm |
| Produit Hauteur Net | 74 mm |
| Poids net | 0,05 kg |
Technique
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Durabilite mecanique | 10 million |
| Minimum Switching Capacity | A9 ... A16 / AE9 ... AE16 / N / NE 17 / 5 VLT4K |
| Type d'encastrement | Côté |
| Type de montage | Montage latéral |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Fréquence assignée (f) | Supply Circuit 50 / 60 Hz |
| Tension assignée d’isolement (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V |
| Courant assignée d’emploi AC-15 (Ie) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A |
| Courant assignée d’emploi DC-13 (Ie) | (24 V) 6 / 144 A, (48 V) 2.8 / 134 A, (72 V) 1 / 72 A, (125 V) 0.55 / 69 A, (250 V) 0.3 / 75 A |
| Tension | Circuit auxiliaire 690 V |
| Courant assigné de courte durée admissible (Icw) | for 0.1 s 140 A, for 1 s 100 A |
| Remarques | 100 |
| Dispositif de protection contre les courts-circuits | Auxiliary Circuit - gG Type Fuses 10 A |
| Adapté pour | A9, A12, A16, N22E, N31E, N40E |
| Type de borne | Bornes à vis |
Technique UL/CSA
| Pilot Duty UL/CSA | A600, Q300 |
Environnement
| Indice de protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Informations RoHS | 2CMT2021-006277 |
| DEEE B2C / B2B | Business To Business |
