8018636

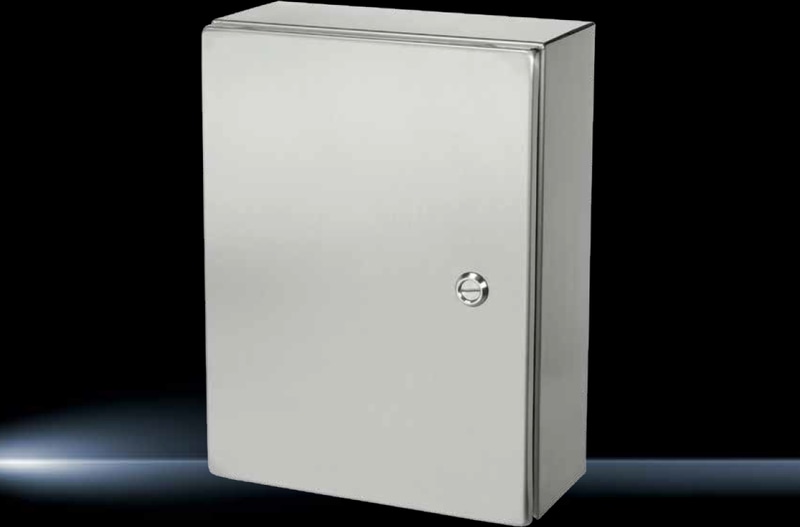

Rittal 8018636 – WM24X24X08 Wall-Mount Enclosure

Wall-mounted enclosure, WM series, constructed from 316L stainless steel with #4 brushed finish, configured for flange-mount disconnect (FMD) applications.

Nominal enclosure size is 24" H × 24" W × 8" D (disconnect configuration with extended width for flange). Features include a one-piece enclosure body, flange door with universal disconnect cutout, left-hand hinge, and 2-point latching L-handle.

Supplied with a zinc-plated mounting panel, foamed-in-place polyurethane gasket, and wall-mounting provisions. Rated for UL Type 1, 12, 3R, 4, and 4X, suitable for industrial and corrosive environments.
