KQ2H06-07A-X562

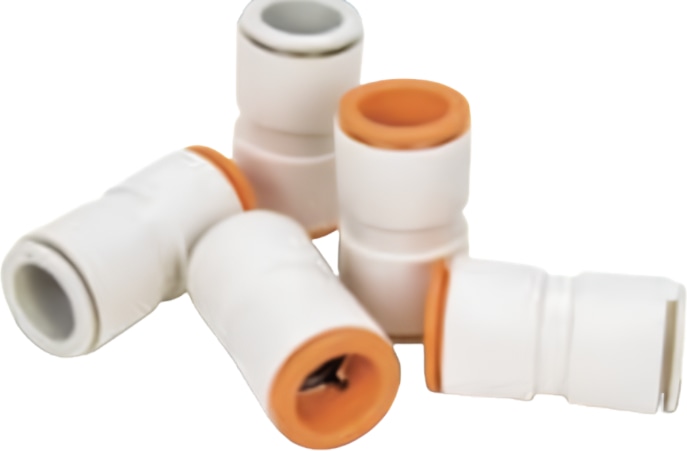

The SMC KQ2H06-07A-X562 is a KQ2 Series one-touch conversion union designed to connect 1/4 in. O.D. tubing to 6 mm O.D. tubing, providing a simple transition between inch and metric pneumatic tubing. Its push-to-connect design allows fast installation and removal while maintaining a compact, reliable connection.

The fitting measures approximately 11.1 mm in outside diameter, 27.6 mm in overall length, and 13.3 mm across the center body. It is suitable for pneumatic and vacuum applications, with vacuum capability down to -100 kPa. The KQ2H06-07A-X562 is ideal for machinery, automation systems, and pneumatic equipment where metric and imperial tubing sizes need to be connected without additional adapters.
