Official Fortress Distributor
Safety Switches for Automation
Heavy Duty
- Robust and Strong
- Protects machinery in dirty environments
- Retention force of 10,000N
Medium Duty
- Use with lightweight machinery
- Retention force of 2,500N
- Performance Level d
Compact Guard Lock
- Extensive inventory
- Low production cost
- Next day shipping

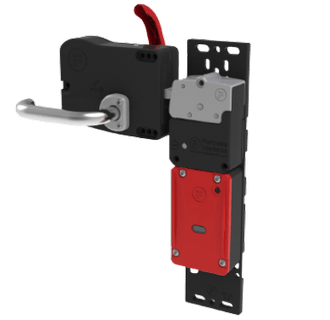

Heavy Duty Guard Lock
With Single Action Escape Release Handle for Hinged or Sliding Door Applications where controlled access is required via a Power-to-Unlock Solenoid. Door Hinges or Slides to the Left of the Unit. The Actuator has a 12mm misalignment tolerance for resilience against guard adjustment. Guard locks have two pairs of 2NC safety contacts and monitoring contacts on both the guard opening (via Red LED), and for the guard locking (via Yellow LED)This product is pre-wired to an M12 10-Pin disconnect and is compatible to any CABLE-XM-D8 variants where ‘X’ is length in metres.

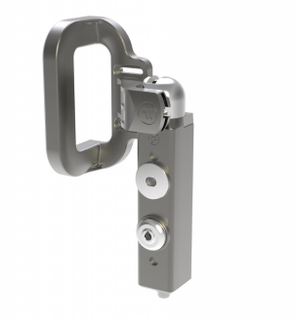

Medium Duty Guard Lock
With Fixed Handle for Hinged Guard Applications where controlled access is required via a Power-to-Unlock Solenoid. Door Hinges to the Left or Right of the Unit. The Actuator has a 4mm misalignment tolerance for resilience against guard adjustment. Guard locks have two pairs of 2NC safety contacts and monitoring contacts on both the guard opening (via Red LED), and for the guard locking (via Green LED). This product is pre-wired to an M12 12-Pin disconnect and is compatible to any CABLE-XM-TQM variants where ‘X’ is length in metres.

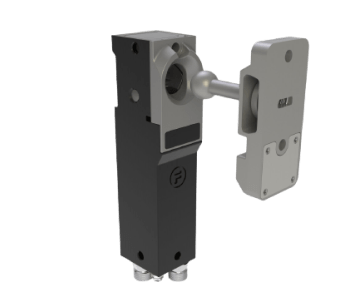

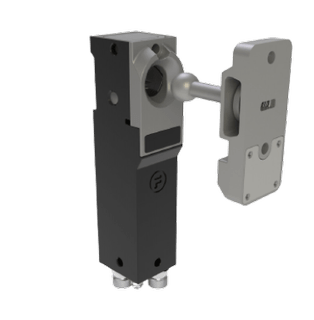

Compact Guard Lock
With High-coded RFID Technology and safety on guard locking in applications where controlled access is required via a Power-to-Unlock Solenoid and where installation are limited on hinge radius or mounting space. This product comes with one 5-Pin M12 disconnect and is compatible with any CABLE-XM-AT1 where ‘X’ is the cable length in metres.
